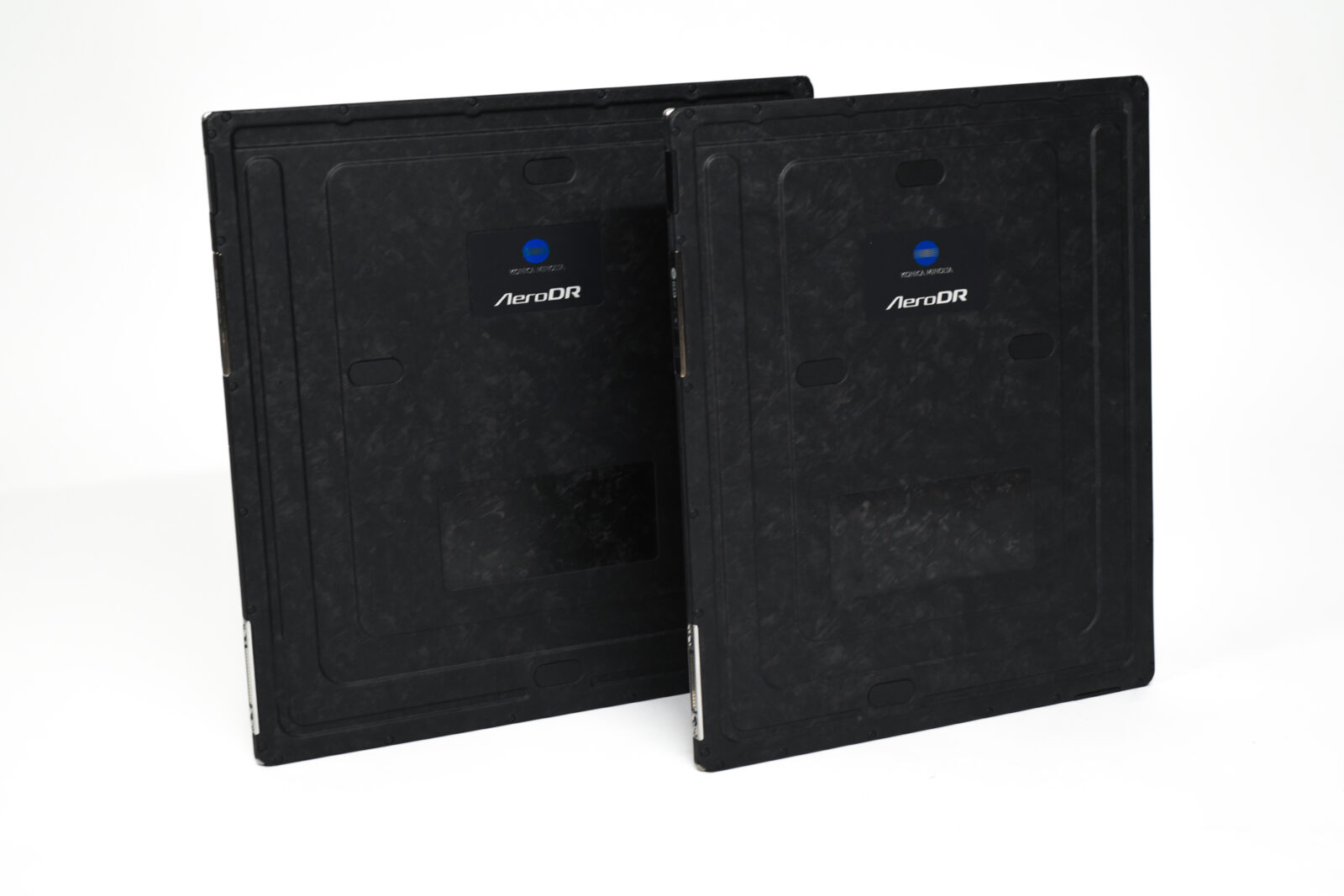

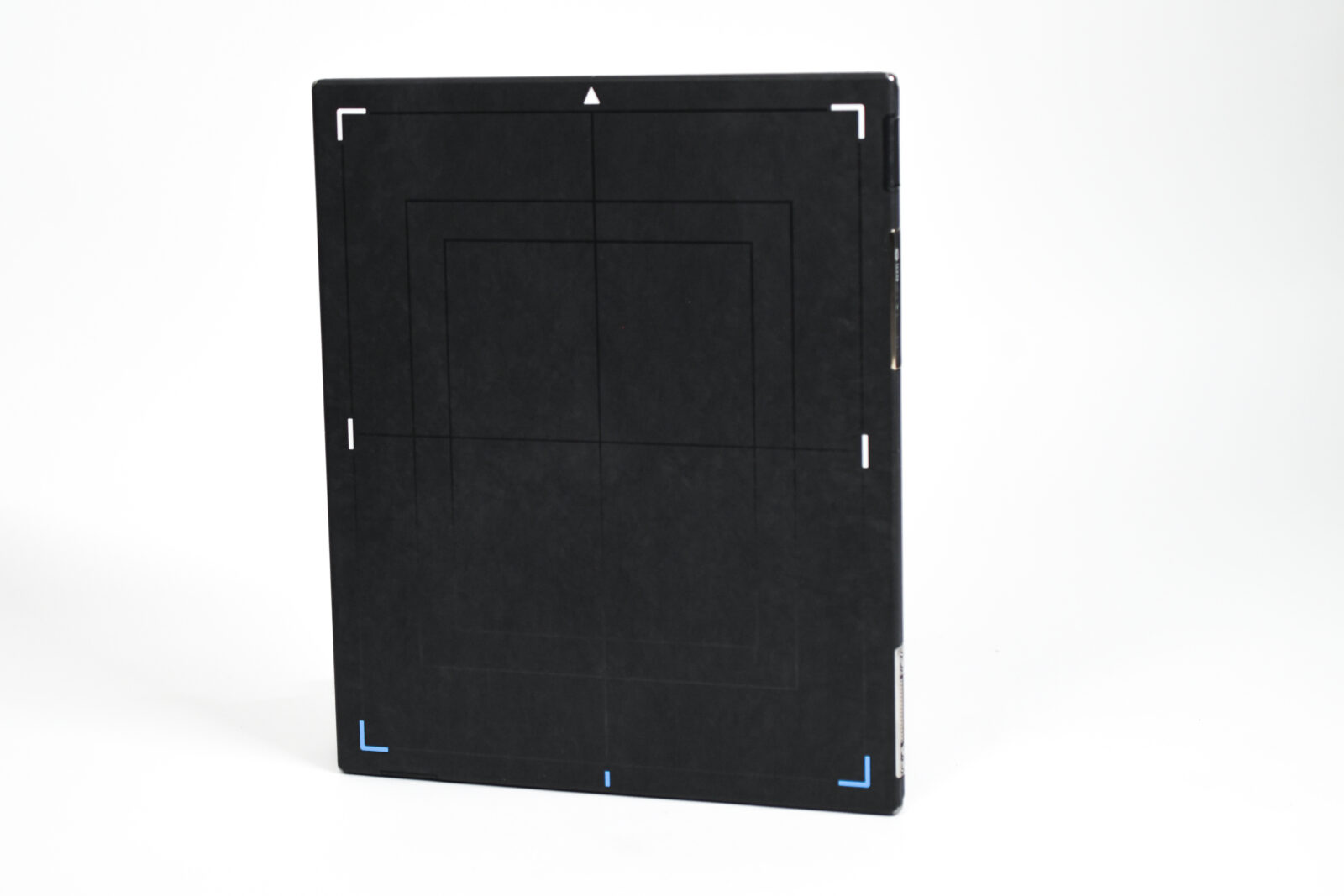

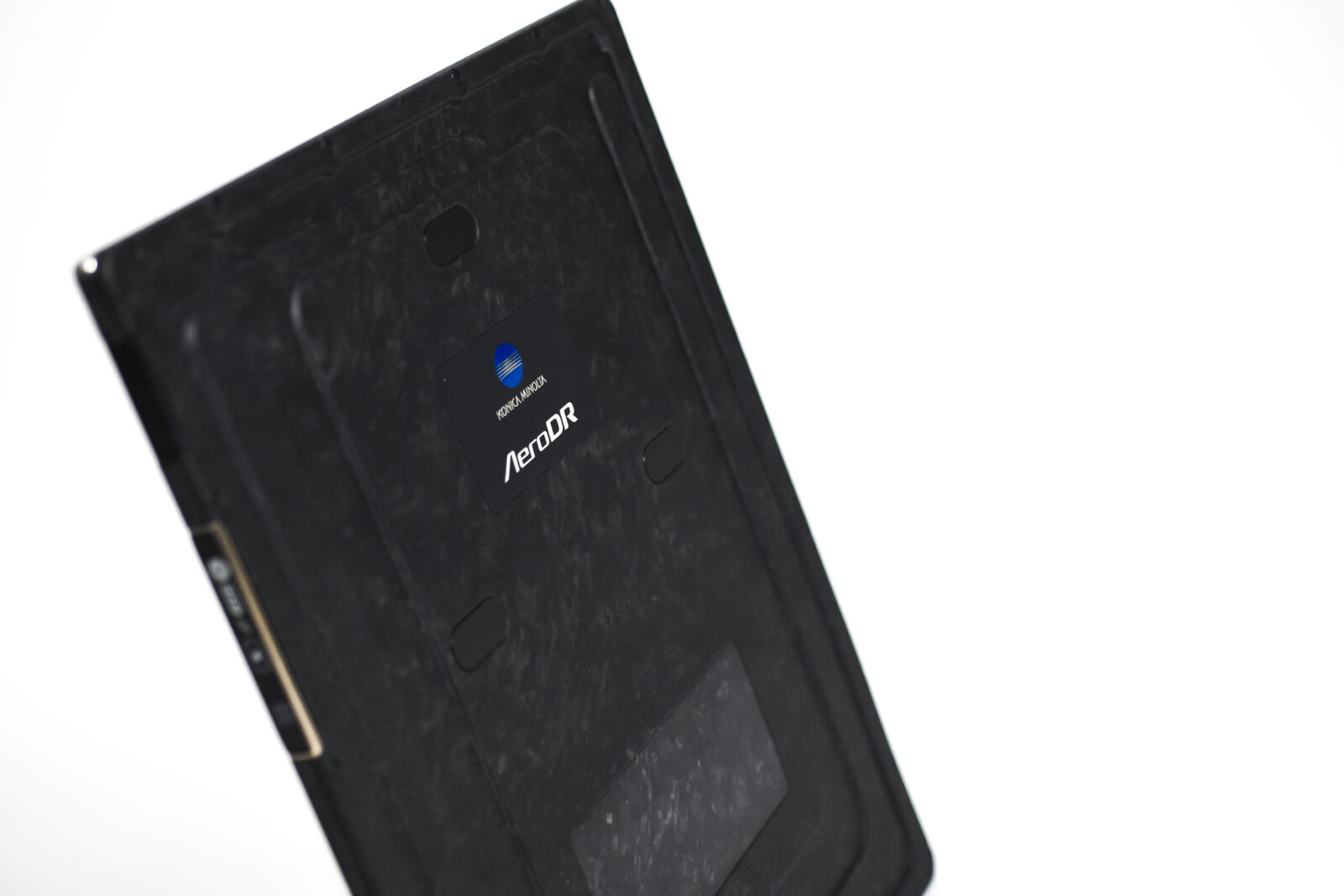

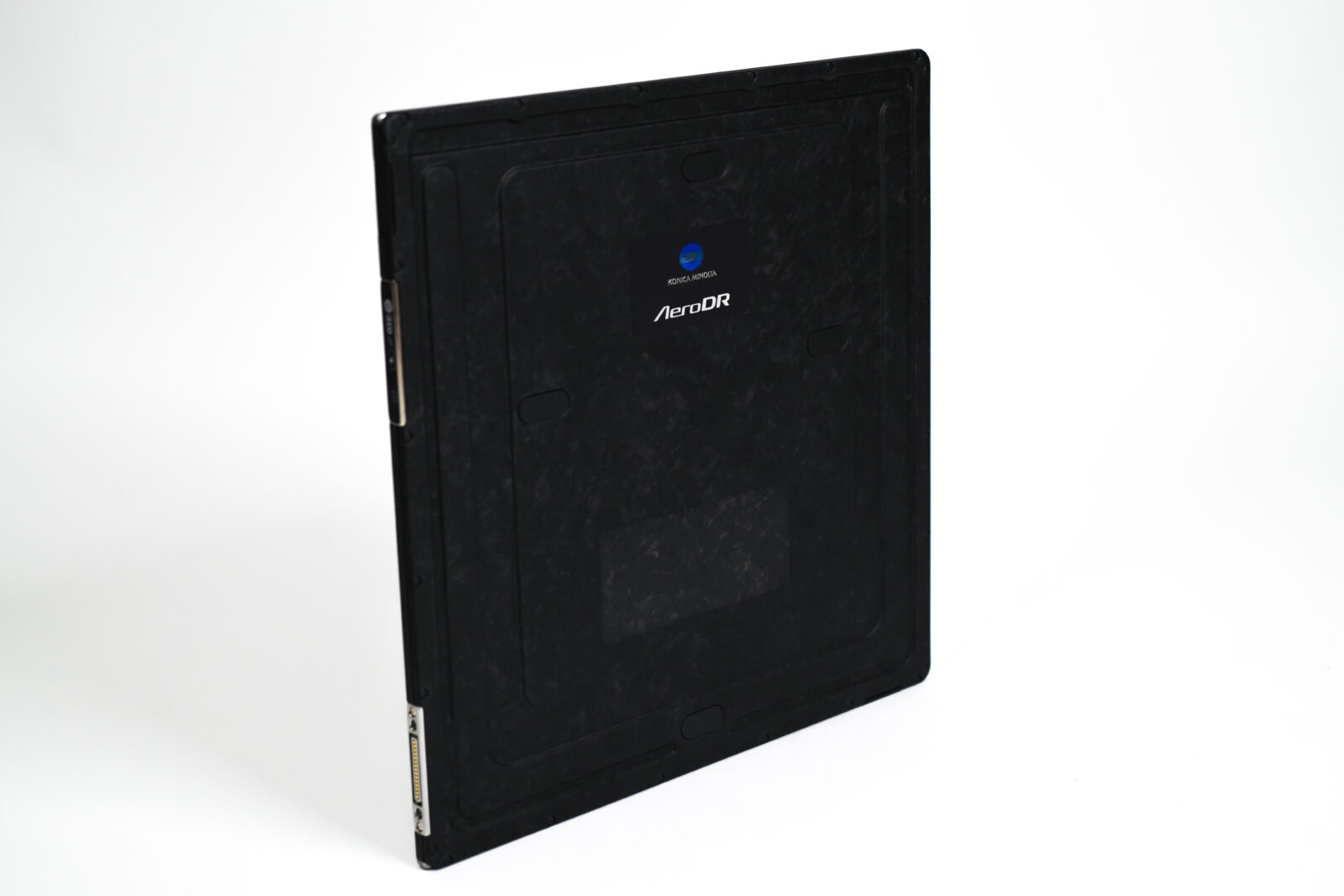

AeroDR Carbon Detector
AeroDR Carbon Detectors from Konica Minolta deliver high-definition imaging, durable carbon construction, and advanced DR performance.
AeroDR Carbon DetectorTechnical Specifications
| Detector Sizes | 14×17, 17×17 |
|---|---|
| Pixel Pitch | 100 µm / 200 µm selectable |
| Imaging Technology | Up to 72% DQE |
| Material | Carbon SMC casing |
| Load Capacity | Up to 881 lbs distributed |
| Protection Rating | IPX6 liquid resistance |
| Battery Runtime | Up to 8 hours |
| Power / Charging | ~30 minutes charge time |
| Exposure Detection | AED (Auto Exposure Detection) |
| Workflow Interface | In-panel storage, DDR ready |
| Warranty | 7-year power cell warranty |
Advanced DR Imaging Performance
AeroDR Carbon from Konica Minolta delivers high-definition imaging, durable construction, and advanced performance for demanding radiography environments.
High-Definition Imaging
A CsI scintillator with 100-micron resolution and up to 72% DQE delivers sharp, high-contrast images. Selectable resolution options support both detailed imaging and broader dynamic range.
Carbon-Based Durability
The carbon SMC monocoque casing provides a lightweight yet highly durable structure. It supports heavy loads, resists drops, and maintains performance in high-volume clinical environments.
Advanced Workflow & DDR Capability
Rapid cycle times, in-panel storage, and automatic exposure detection support efficient workflows. Built-in Dynamic Digital Radiography (DDR) capability enables motion imaging for advanced diagnostic applications.

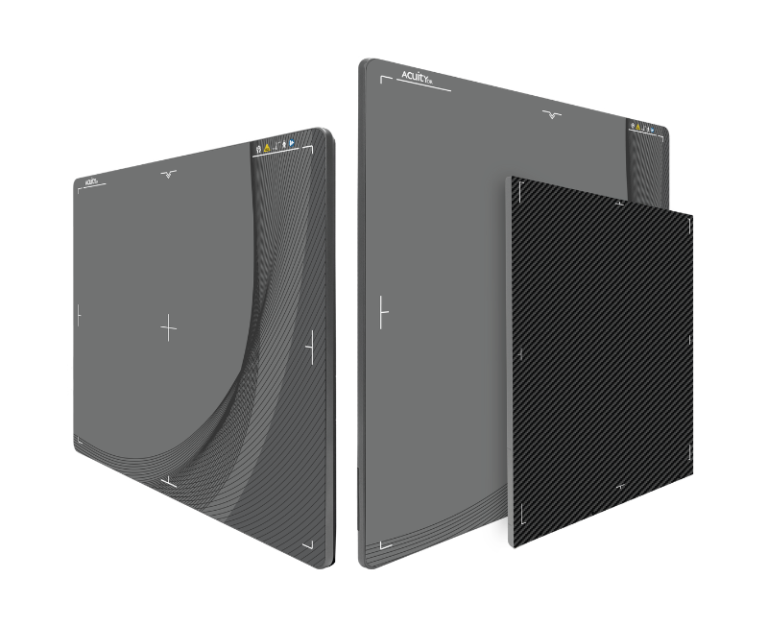

Related Products
