Agility

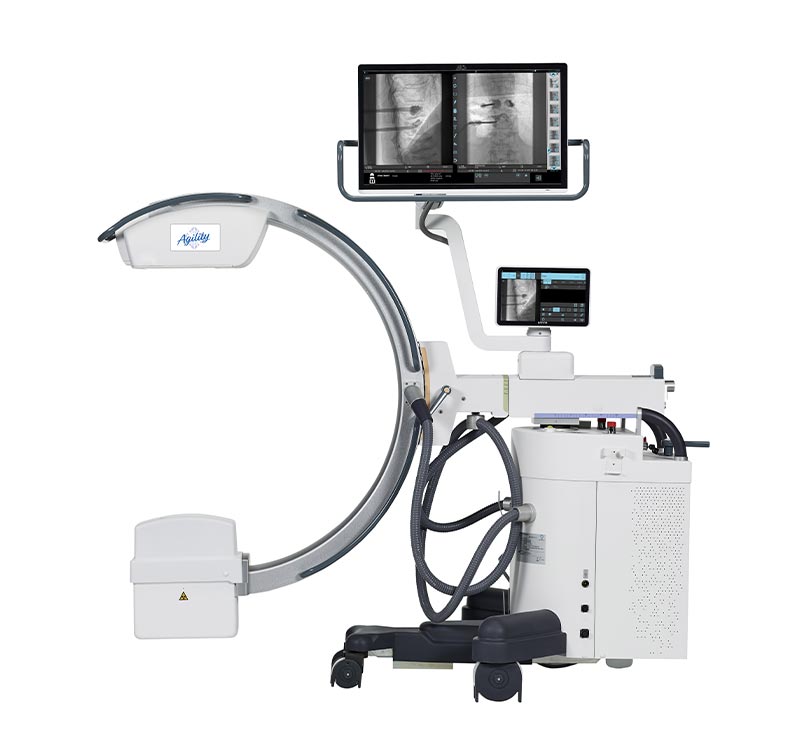

The Agility from AMRAD Medical is an all-in-one mobile C-arm system designed for compact fluoroscopy workflow and flexible positioning.
AgilityTechnical Specifications
| System Type | Mobile C-arm all-in-one fluoroscopy system |
|---|---|
| Detector Type | Flat panel detector with removable anti-scatter grid |
| Detector Sizes | Available acquisition surfaces from 21 × 21 cm to 30 × 30 cm |
| Display | 27-inch landscape monitor with 4 MP resolution; additional high-resolution touch screen console |
| Imaging Technology | Pulsed X-ray emission with modulated power; balanced C-arm with precise orbital and angular rotation; laser localizers for zero-dose centering |
| Image Processing | Touchscreen interface for adapting and post-processing images |
| Power / Charging | Optional wireless monitor cart powered by lithium-ion battery |
| Connectivity | USB; Ethernet; HDMI; WiFi; high-resolution WiFi video transmission for remote display |
| Workflow Interface | Swiveling multi-touch console; operation panel; foot switch or multi-function hand switch control |
| Dimensions / Size | Vertical movement range 18 in / 450 mm |
| Mounting / Configuration | Single-unit compact mobile C-arm; optional wireless monitor cart; optional integrated printer; optional wireless footswitch; optional NFC login |
| Imaging Capability | 160° orbital rotation from +65° to -95°; angular rotation greater than ±210°; live and stored image display on main monitor |
| Clinical Applications | Fluoroscopy procedures in operating rooms, pediatric low-dose applications, and gridless procedures in tight-space surgical environments |
Compact Fluoroscopy Maneuverability
Agility combines compact movement, flat panel imaging, and flexible monitor control for fluoroscopy use.
Compact C-Arm Positioning
The balanced C-arm supports fast, precise positioning with wide orbital and angular rotation. Its compact single-unit design helps it move easily within and between operating rooms.
Flexible Flat Panel Imaging
Agility offers flat panel acquisition sizes up to 30 × 30 cm and pulsed X-ray output with modulated power. The removable grid also supports lower-dose pediatric and gridless workflows.
Built for Tight Spaces
The system is designed for operating-room use where space is limited. Adjustable monitors, remote display options, and side-access controls help maintain visibility and access around the table.
