JADE

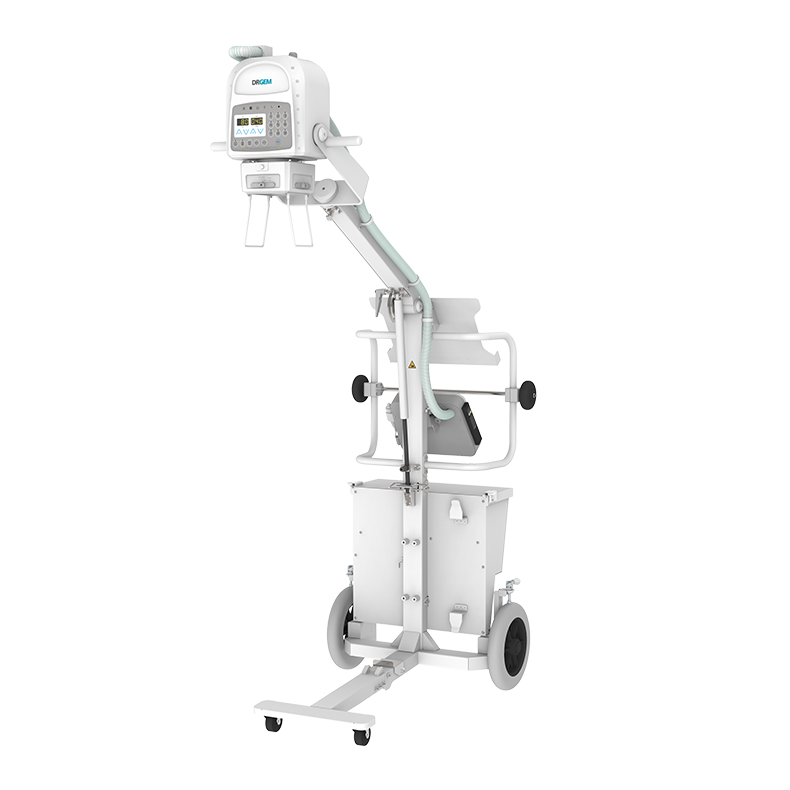

The JADE mobile X-ray system from DRGEM is designed for compact portable imaging, intuitive operation, and flexible clinical use.
JADETechnical Specifications
| System Type | Portable X-ray system |
|---|---|
| Imaging Technology | 4 kW high-frequency X-ray generator; 100 kHz operation; high-quality tube assembly and collimator |
| Power / Charging | Maximum 120 kVp; 0.1–250 mAs; 4 kW output |
| Workflow Interface | Operator control panel; external operator control panel; remote controller; three-way exposure control |
| Connectivity | USB interface; Bluetooth; remote diagnosis support |
| Software Platform | DR option with laptop, detector, and imaging software; APR tool with up to 9 presets |
| Image Processing | Anatomical view-based digital image processing; automatic image storage and print; DICOM 3.0 workflow |
| Mounting / Configuration | Foldable two-step stand; DR Option 1 and DR Option 2 configurations; vehicle loadable |
| Weight | 53.5 kg including X-ray unit, collimator, and stand |
| Compatibility / Retrofit | DR-compatible with laptop PC stand, detector storage, and imaging software options |
| Imaging Capability | Portable radiography with APR presets and LED collimator lamp timer control |
| Clinical Applications | Bedside imaging, operating rooms, intensive care units, home healthcare, and veterinary use |
Portable Imaging Flexibility
The JADE Series from DRGEM delivers compact positioning, simple controls, and flexible portable radiography workflows.
Compact Portable Design
The JADE Series is built as a lightweight portable system with a foldable two-step stand and compact form factor. This supports transport and setup across varied care environments.
Intuitive Control Options
The system supports four-way control through an operator panel, external panel, and remote controller. APR presets and three-way exposure control help simplify daily operation.
Versatile Clinical Use
The JADE Series is suited for bedside imaging, operating rooms, ICUs, home healthcare, and veterinary applications. Its portable design supports use where fixed imaging systems are impractical.
