KDR® Flex

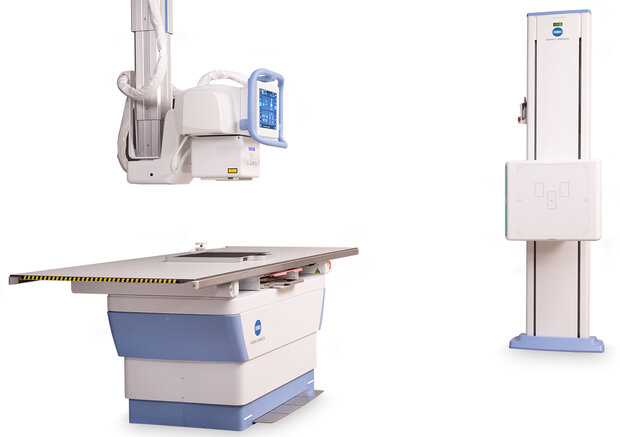

The KDR® Flex Overhead X-ray System from Konica Minolta is designed for flexible positioning, automated alignment, and advanced DR workflows.
KDR® FlexTechnical Specifications
| System Type | Digital radiography (DR) X-ray system |
|---|---|
| Detector Type | AeroDR flat panel detectors with CsI scintillator |
| Detector Sizes | 10×12; 14×17; 17×17 |
| Display | 12" tube-mounted touchscreen interface with image preview |
| Imaging Technology | Auto-positioning; auto-tracking; manual assist mode; DDR-ready imaging |
| Image Processing | Digital radiography processing with stitching and dynamic image series support |
| Power / Charging | AC-powered system; high-frequency generator integration |
| Connectivity | DICOM-compatible DR system integration |
| Workflow Interface | Tube-mounted controls; capacitive touch handle; remote operation |
| Software Platform | Konica Minolta DR imaging software platform |
| Load Capacity | Up to 771 lbs (350 kg) elevating table |

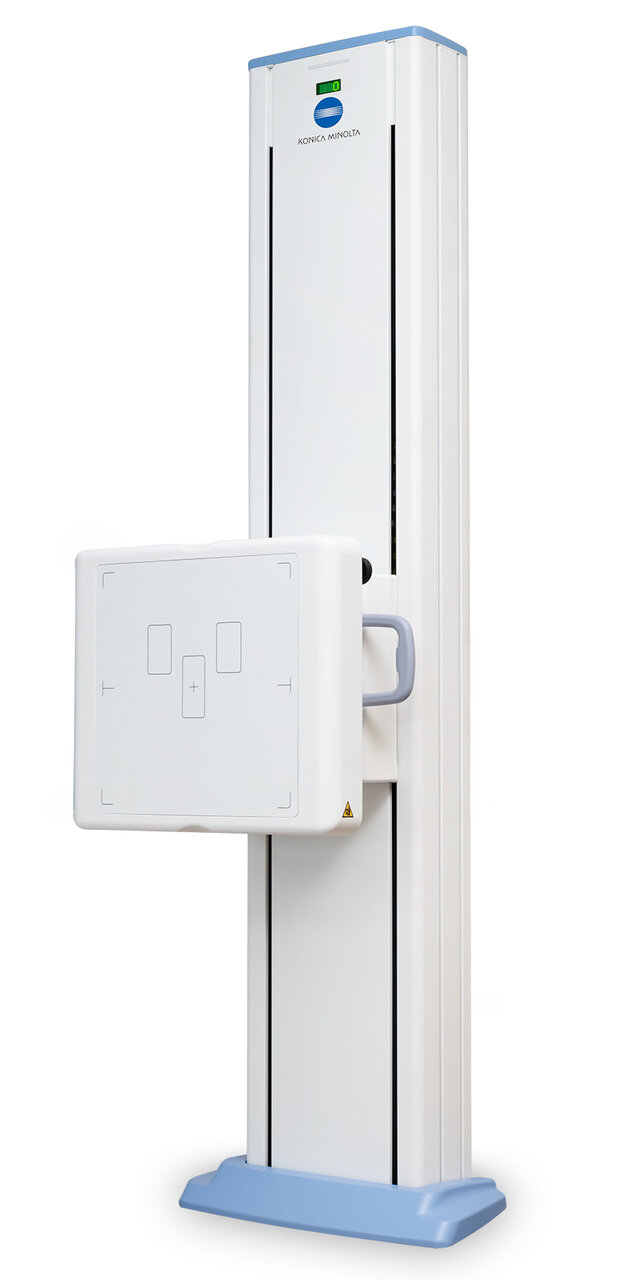

| Mounting / Configuration | Ceiling-mounted overhead tube system with wall stand and table |
| Clinical Applications | General radiography, orthopedic imaging, dynamic imaging, hospital workflows |
| Imaging Capability | 100 µm resolution; stitching; dynamic digital radiography (DDR) capability |
| Warranty | 5-year manufacturer warranty |
Flexible DR Workflow Performance
The KDR Flex Overhead X-ray System delivers adaptable workflows, automated alignment, and advanced DR imaging capabilities.
Adaptive Positioning Modes

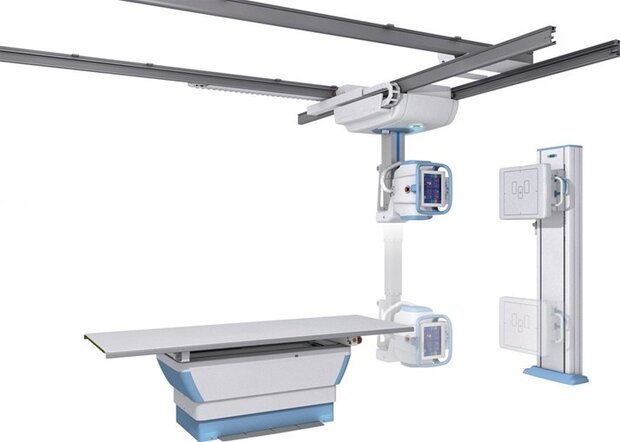

The system supports manual, assist, and fully automated positioning modes, allowing facilities to match workflow complexity to exam needs. Auto-tracking maintains alignment during movement.
Dynamic Imaging Capability
Dynamic Digital Radiography (DDR) captures sequential images to visualize anatomical motion over time. This supports functional assessment beyond standard static imaging.
Designed for Clinical Efficiency
A tube-mounted touchscreen and capacitive handle allow technologists to adjust positioning and review images directly at the system, improving workflow efficiency.
