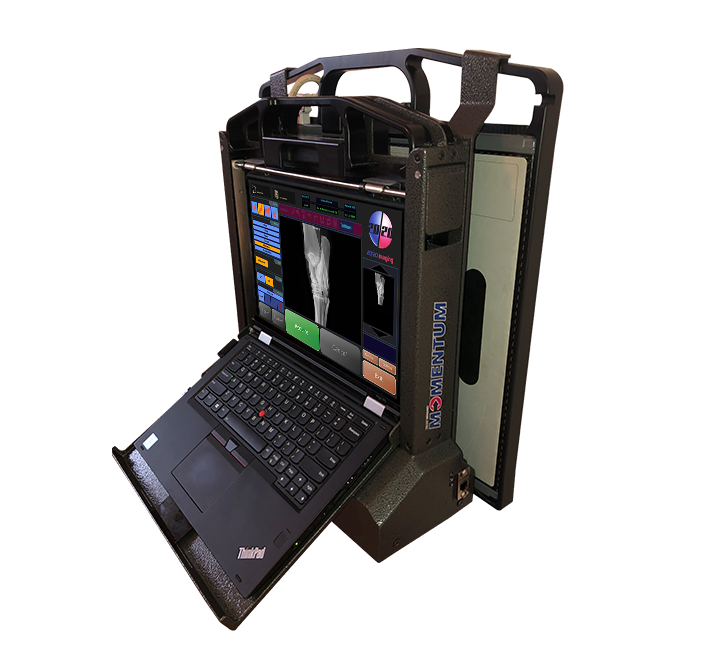

Momentum-EQ
The Momentum-EQ from 20/20 Imaging is an equine DR imaging system built for portable workflow, durable field use, and fast image review.
Momentum-EQTechnical Specifications
| System Type | All-in-one equine digital radiography system |
|---|---|
| Detector Sizes | 10 × 12 in premium DR panel |
| Imaging Technology | Wireless DR imaging for equine use; portable field imaging; REALISM image enhancement technology; battery-powered generator compatibility |
| Image Processing | Automated image optimization; REALISM image processing for improved fine bone detail and lower required X-ray exposure |
| Battery Runtime | DR panel captures more than 150 images, or about 4 hours per charge |
| Power / Charging | All-in-one charging system with single power cable; optional battery-powered generators available; rapid charge DR panel capability |
| Workflow Interface | Built-in positioner and custom holders; complete DR console managing hardware, positioning, and image processing; intuitive workflow for training and daily use |
| Software Platform | Ultra Acquisition Software |
| Weight | System under 18 lb; DR panel 4 lb; optional VET-20BT and SPX-018 generators 16 lb each |
| Mounting / Configuration | Portable all-in-one enclosure with custom tablet enclosure, ergonomic holders, and optional VET-20BT or SPX-018 generator pairing |
| Compatibility / Retrofit | Designed for equine field and clinic workflows; pairs with lightweight portable generators for remote imaging use |
| Imaging Capability | High-resolution equine DR imaging optimized for bone detail and portable veterinary diagnostics |
| Clinical Applications | Equine veterinary imaging in clinics, barns, and remote field environments |
| Warranty | 3-year manufacturer warranty; 7-year capacitor coverage for the premium DR panel |
Portable Equine DR Workflow
Momentum-EQ combines portable equine imaging, integrated workflow, and field-ready DR performance.
Field-Ready Portable Design
Momentum-EQ is built for equine environments with an under-18-pound enclosure, rugged aluminum construction, integrated holders, and simple charging.
Optimized Equine Image Quality
The 10 × 12 wireless DR panel and REALISM processing help improve fine bone detail while supporting lower exposure and dependable diagnostic review.
Built for Equine Practice
Designed for clinic and remote use, the system supports fast setup, portable generator pairing, and equine-specific acquisition tools for daily workflow.
