OTC18T
The OTC18T from Del Medical is a ceiling-mounted radiographic system with synchronized tracking and integrated DR workflow.
OTC18TTechnical Specifications
| System Type | Radiographic X-ray system |
|---|---|

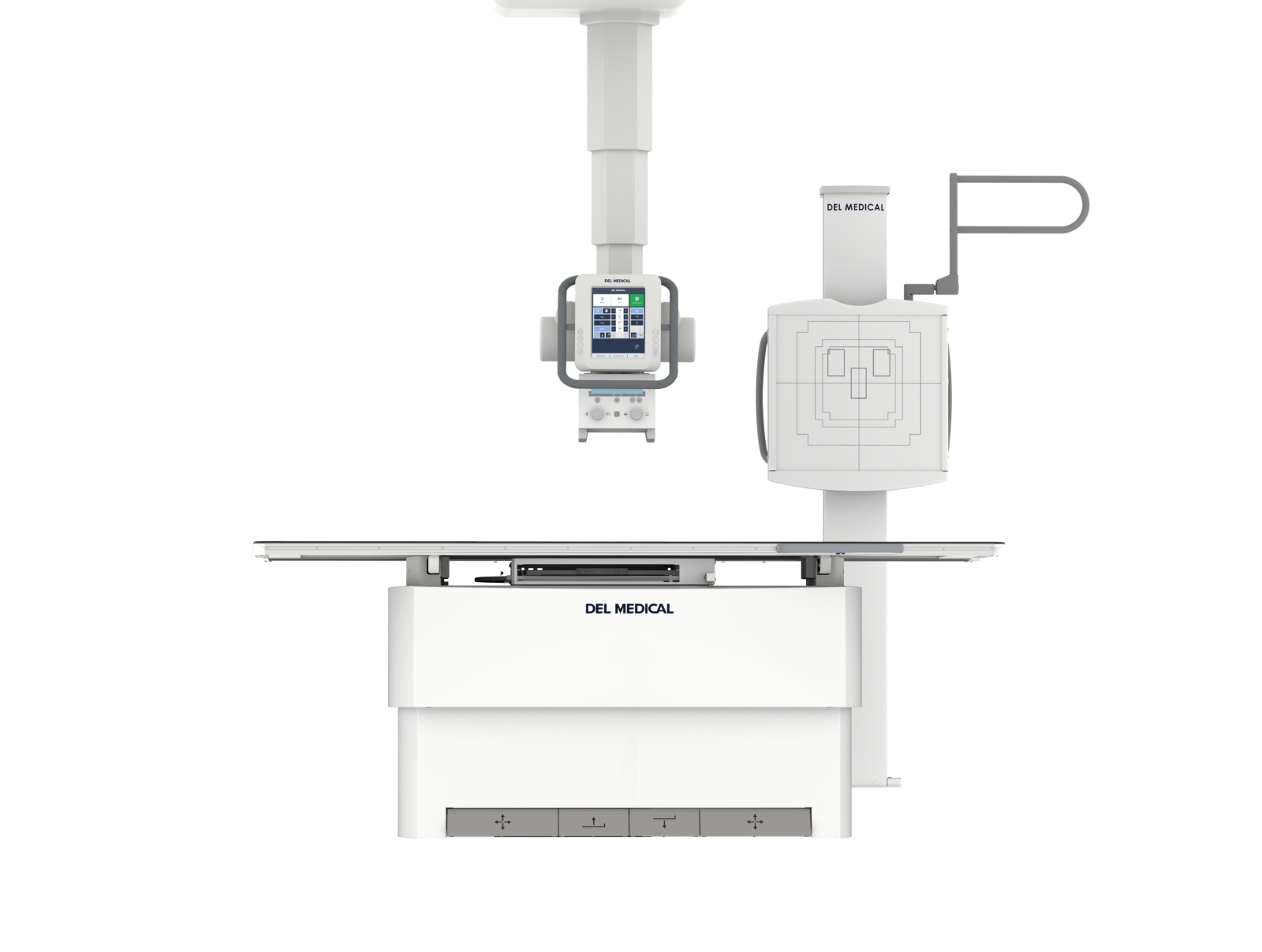

| Mounting / Configuration | Ceiling-mounted overhead tube crane with wall stand and elevating table |
| Detector Sizes | 10×12; 14×17; 17×17; optional 17×42 long-length detector |

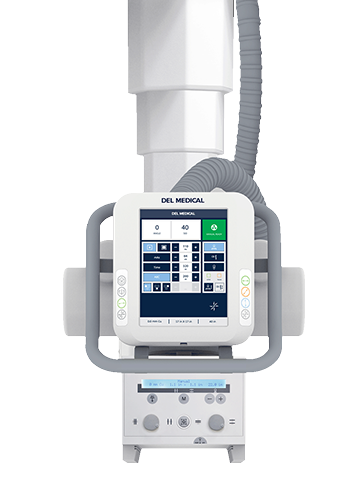

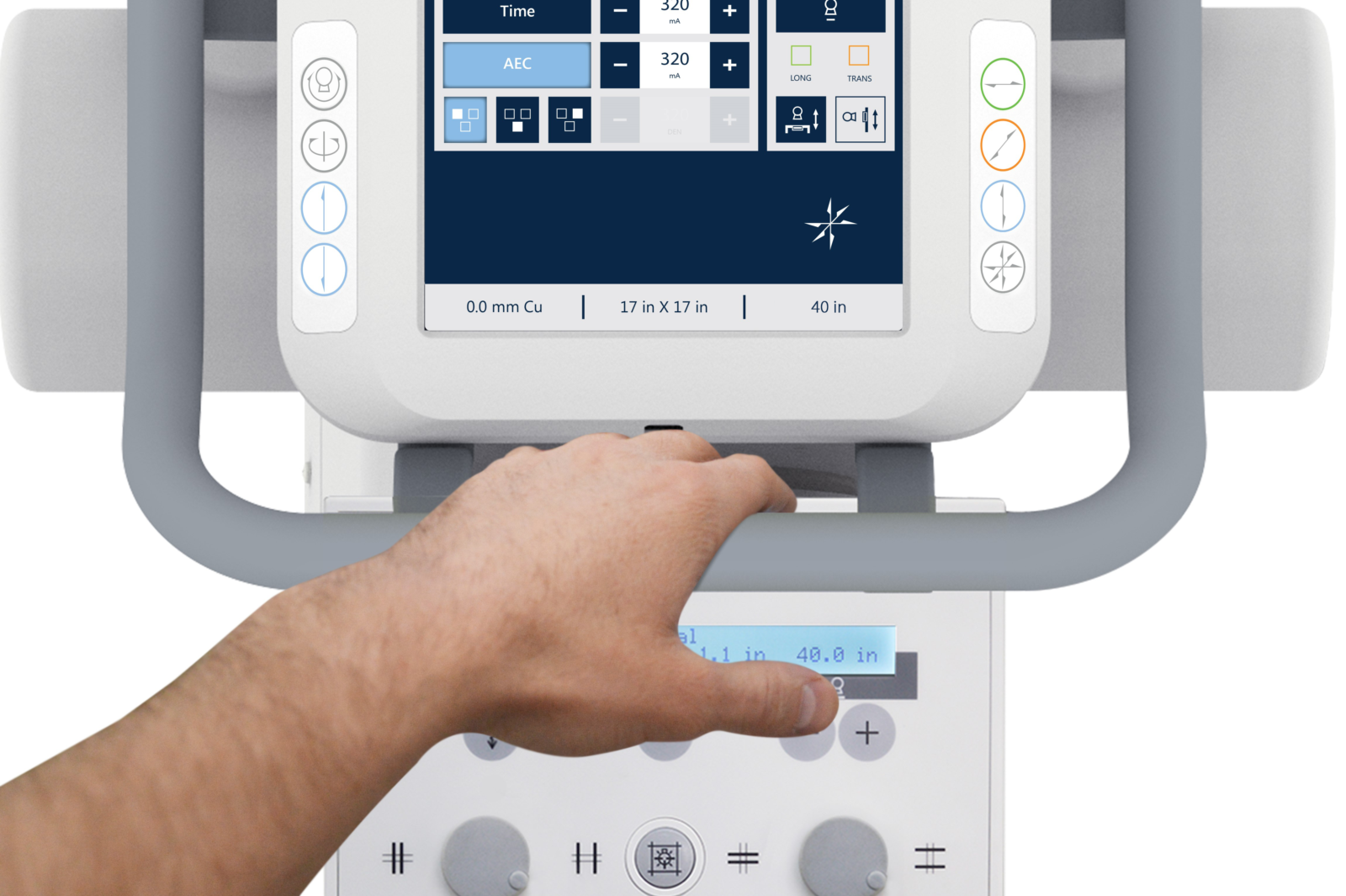

| Workflow Interface | 10.4" tube-mounted touchscreen; patient-side controls; generator integration |
| Imaging Technology | Synchronized vertical tracking; electromagnetic braking; auto-collimation |
| Image Processing | DELWORKS DR software with APR, LUT adjustment, and image optimization |
| Power / Charging | 100–240 VAC system; generator options 40–80 kW |
| Connectivity | DR system integration with wireless and fixed detector support |
| Load Capacity | Up to 800 lbs (363 kg) elevating table |
| Clinical Applications | General radiography, orthopedic imaging, hospital and imaging workflows |
| Imaging Capability | Automated tube alignment with table and wall stand for consistent positioning |
| Warranty | 5-year manufacturer parts warranty |
Synchronized Radiographic Workflow Performance
The OTC18T delivers synchronized positioning, integrated workflow, and consistent imaging performance.
Synchronized Tube Tracking

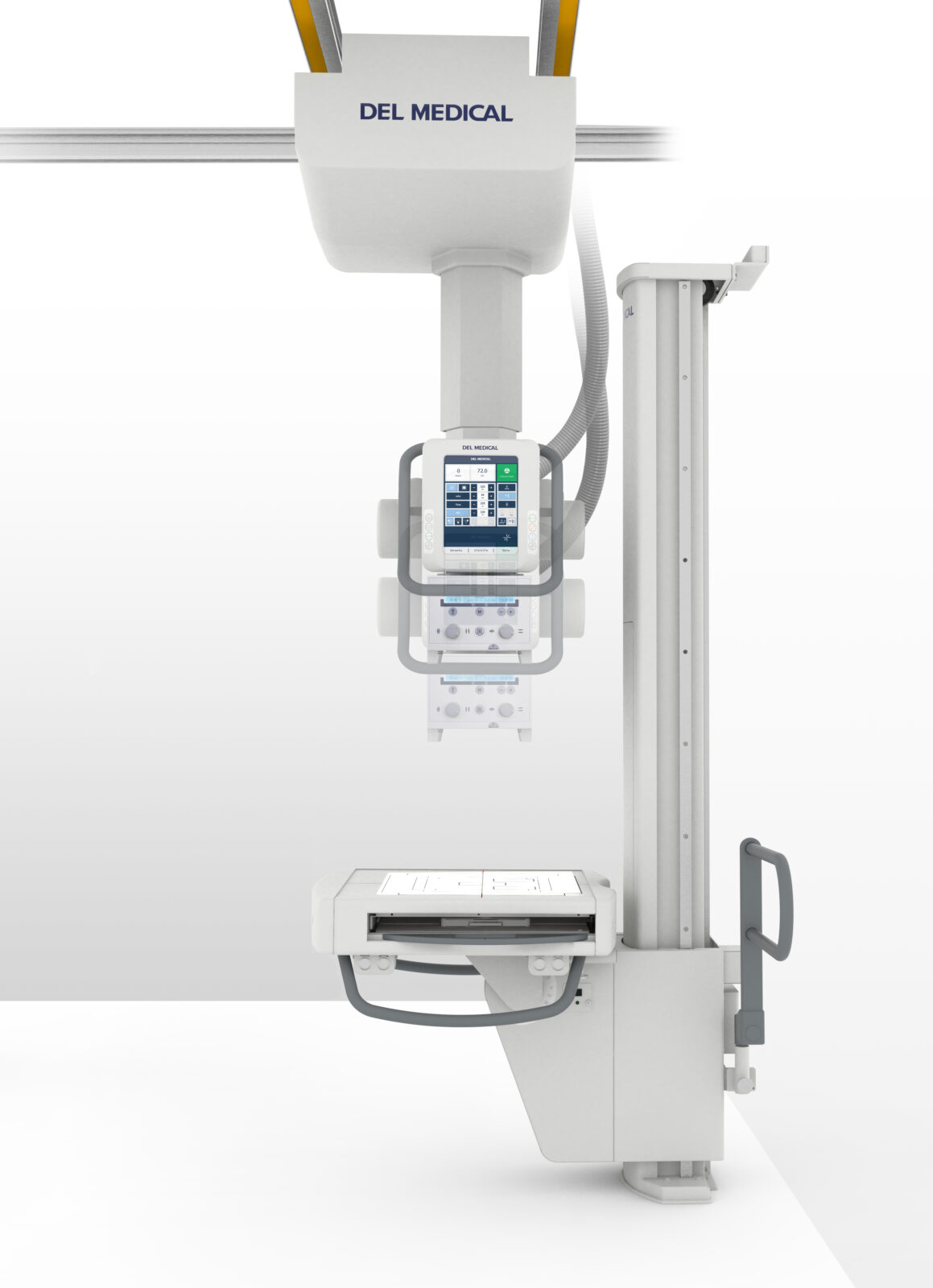

Motorized vertical tracking automatically aligns the x-ray tube with the table or wall stand, maintaining consistent centering and reducing manual adjustments during exams.
Integrated Imaging Workflow
The system integrates with DELWORKS DR software and generator controls, allowing technologists to manage exposure settings and imaging workflows directly from the tube-side interface.
Built for Clinical Throughput
Designed for hospitals, imaging centers, and orthopedic facilities, the system supports high patient throughput with flexible positioning and an 800 lb table capacity.
