Del Medical Straight Arm
The Straight Arm universal X-ray system from Del Medical is designed for compact imaging spaces, flexible positioning, and efficient DR workflows.
Del Medical Straight ArmTechnical Specifications
| System Type | Universal X-ray system |
|---|---|
| Detector Type | Fixed and wireless DR detector options available |
| Imaging Technology | High-frequency generator; always-centered tube and image receptor; manual and motorized positioning |
| Image Processing | DELWORKS acquisition and processing software with anatomical programming and optional stitching |
| Exposure Detection | EasyConnect AED with compatible DELWORKS wireless detectors |
| Connectivity | DELWORKS DR workflow; single, dual, or multi-detector configurations |
| Workflow Interface | Integrated DELWORKS workflow with pre-exposure data display, LUT controls, reject management, and orientation tools |
| Software Platform | DELWORKS DR system |
| Dimensions / Size | 88.4" H × 89" W × 51.2" D |
| Weight | MT500 mobile table: 164 lbs; 201 lbs with cabinet |
| Mounting / Configuration | Single-column floor-mounted straight arm system; optional MT500 mobile table |
| Compatibility / Retrofit | Supports E14C, E24C, E14Ce wireless detectors and E17C fixed detector |

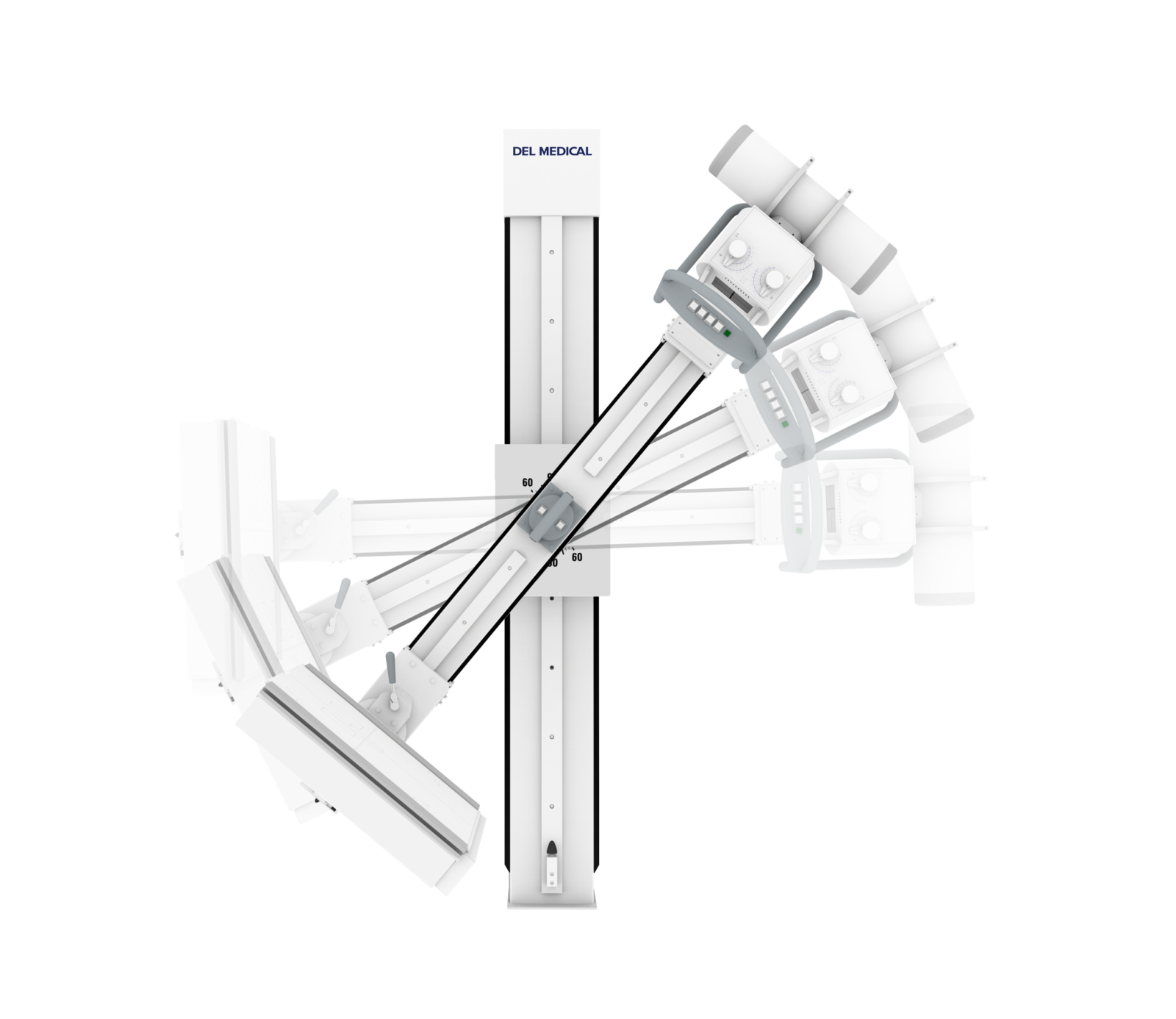

| Imaging Capability | Motorized SID 39.4"–78.7"; arm swivel 135° to -35°; receptor tilt ±45°; vertical travel 17.32"–64.4" |
| Clinical Applications | General radiography, orthopedic, spine, skull, standing, seated, recumbent, and weight-bearing exams |
Compact Room Imaging Flexibility
The Straight Arm system from Del Medical combines compact installation, precise movement, and DR workflow support.
Linear Centered Positioning
Its linear design keeps the tube and receptor aligned throughout movement, reducing positioning guesswork during exams. That helps technologists work more quickly in smaller imaging rooms.
Expanded DR Functionality
With DELWORKS, the system supports anatomical processing, LUT adjustments, reject management, and optional image stitching. These tools help streamline acquisition and improve image review.
Fits Space-Sensitive Settings
The single-column floor-mounted design is suited for private practices and other space-conscious imaging areas. Optional table support expands use for recumbent and non-weight-bearing patients.
