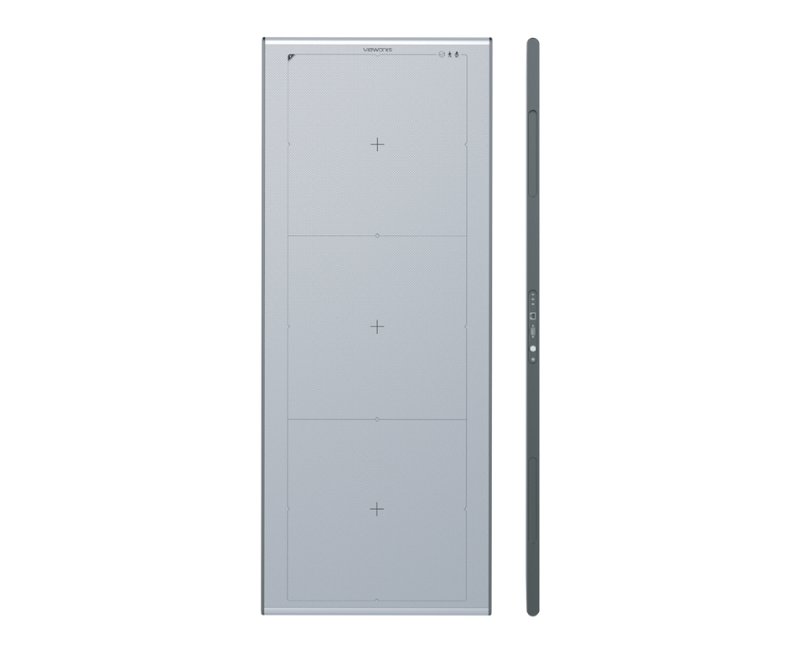

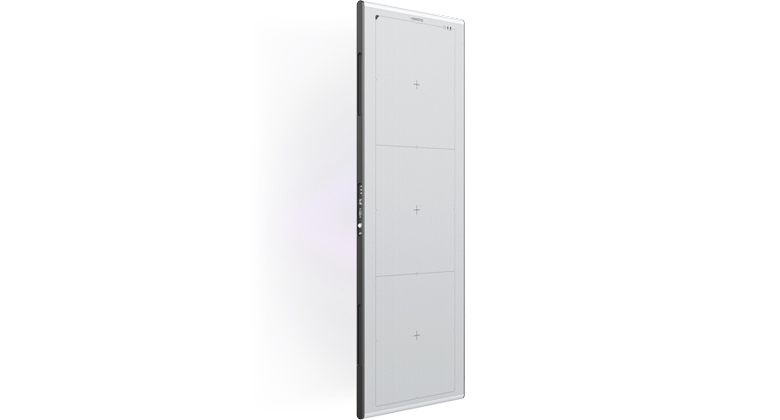

VIVIX-S Long Format Flat Panel Detector
The VIVIX-S Long Format Panel from Vieworks is a DR panel designed for full-spine imaging, fast acquisition, and consistent exposure detection.
VIVIX-S Long Format Flat Panel DetectorTechnical Specifications
| Detector Type | a-Si TFT with photodiode |
|---|---|
| Detector Sizes | 17×51; 17×34; 17×17 |
| Pixel Pitch | 140 µm |
| Exposure Detection | Automatic (AED; Anytime™ technology) |
| Imaging Technology | Long-format DR; multi-scan mode; Gd2O2S scintillator |
| Image Processing | 16-bit grayscale imaging |
| Image Preview Time | <10 seconds scan time |
| Acquisition Time | 8 seconds |
| Power / Charging | DC 24V, 3.0A |
| Connectivity | Gigabit Ethernet |
| Dimensions / Size | 135.7 × 53.2 × 3.0 cm |
| Imaging Capability | 3.5 lp/mm spatial resolution; long-length imaging up to 51 inches |
| Clinical Applications | Full-spine imaging, orthopedic, chiropractic, general radiography |
| Warranty | 5-year manufacturer warranty |
Long-Format DR Imaging Performance
The VIVIX-S Long Format Flat Panel Detector delivers full-length imaging, fast acquisition, and reliable exposure detection for specialized radiography.
Full-Length Imaging Coverage

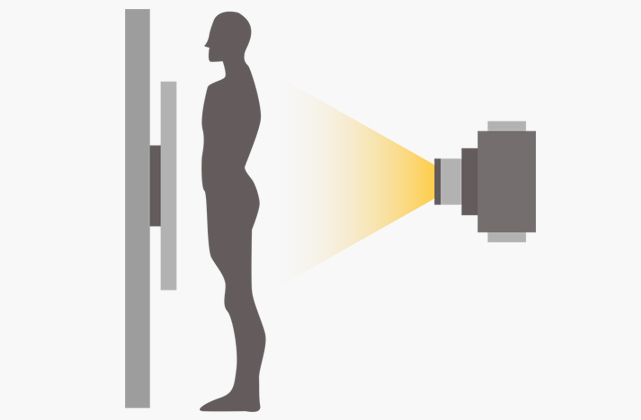

A 17×51-inch active imaging area enables full-spine and long-length studies in a single workflow. Multi-scan capability supports both full and partial scans without repositioning.
Fast Image Acquisition
Short scan times under 10 seconds and an 8-second acquisition cycle support efficient exam workflows. This helps reduce motion artifacts and improve throughput.
Reliable Exposure Detection
Integrated AED (Anytime™) automatically detects exposures from various X-ray sources. This allows flexible use across systems while maintaining consistent image capture.
