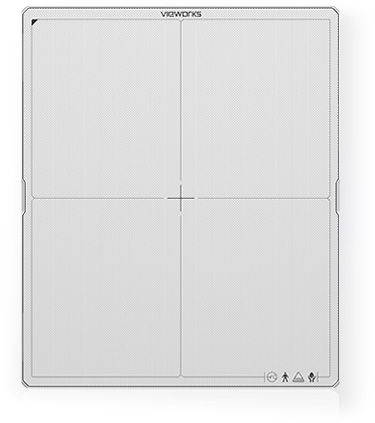

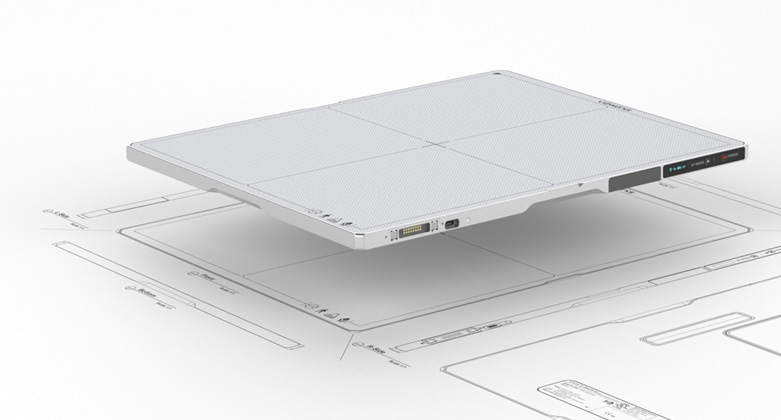

VIVIX-S Series
The VIVIX-S Series from Vieworks includes static DR flat panel detectors designed for general radiography, flexible deployment, and efficient image acquisition.
VIVIX-S SeriesTechnical Specifications
| System Type | Static DR flat panel detector series for digital radiography |
|---|---|
| Detector Type | a-Si TFT flat panel detector with PIN diode; CsI or Gd₂O₂S:Tb scintillator options, depending on model |
| Detector Sizes | 10 × 12 in; 14 × 17 in; 17 × 17 in static DR detector options, including 2530VW, 3643VW, 4343VW, 1012N, and 1717V configurations. |
| Pixel Pitch | 124 µm or 140 µm, depending on detector model |
| Exposure Detection | Line trigger DR Trigger Mode and auto trigger AED Mode |
| Imaging Technology | Static DR imaging with 14-bit or 16-bit grayscale, high spatial resolution, and 40–150 kVp operating range. |
| Acquisition Time | 1.5 to 3 seconds, depending on model and wired or wireless configuration. |
| Battery Runtime | 1.5 to 3 seconds, depending on model and wired or wireless configuration |
| Power / Charging | Wireless V-series models support up to 8 hours standby on one battery or up to 16 hours standby on two batteries, depending on model |
| Connectivity | DC 24V operation; select wireless models support USB-C, magnetic tether charging, and cradle charging |
| Workflow Interface | VXvue viewer software on Windows; smart device preview on select models; communication mode switching and streamlined detector operation |
| Software Platform | VXvue acquisition viewer; XIPL image processing library; QXLink 3 PACS support |
| Protection Rating | IP53 on VIVIX-S 1012N; IP67 on select wireless V-series models |
| Load Capacity | Select wireless V-series models support up to 300 kg uniform load and 150 kg local load |
| Clinical Applications | General radiography; portable and mobile X-ray workflow; retrofit DR upgrades; select models also support veterinary imaging and podiatric applications |
Flexible Static DR Detector Options
VIVIX-S Series combines static DR imaging, multiple detector sizes, and wired or wireless workflow options.
Multiple Detector Formats
The series includes 10 × 12, 14 × 17, and 17 × 17 detector formats, giving facilities options for fixed-room, portable, retrofit, and mobile radiography workflows.
Reliable DR Image Capture
VIVIX-S detectors use a-Si TFT technology with high spatial resolution, AED support, and scintillator options that help support consistent static radiography performance.
Built for Upgrade Flexibility
With wired, wireless, and retrofit-friendly configurations, the series supports upgrades from film or CR environments as well as use in mobile and veterinary applications.
