AAU Elite

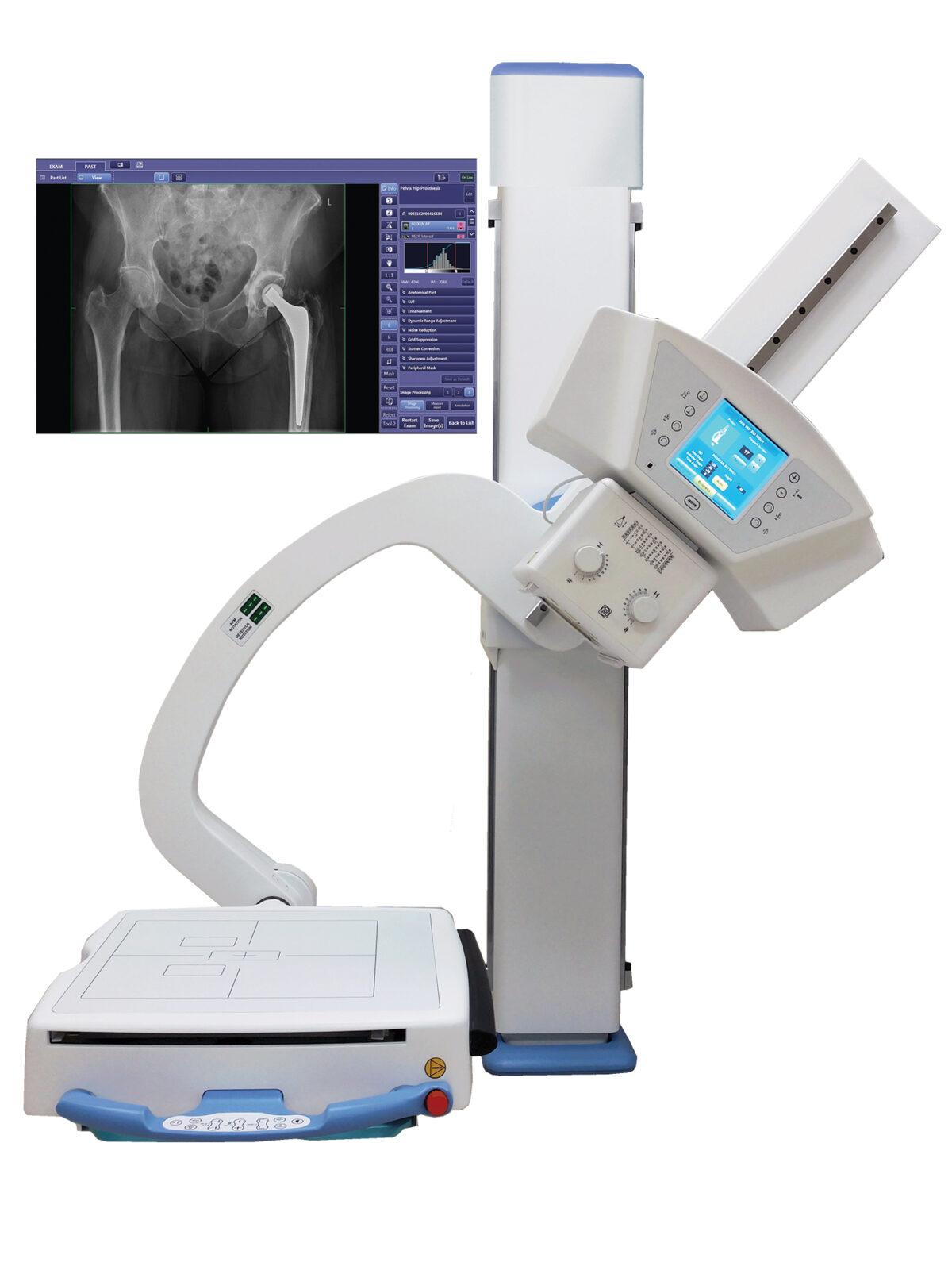

The AAU Elite and AAU Elite with Canon DR from AMRAD Medical are designed for flexible positioning, compact installation, and integrated digital radiography workflows.
AAU EliteTechnical Specifications
| System Type | Single-detector U-arm X-ray system |
|---|---|
| Detector Type | Version options include Canon CXDI-403C wireless detector or 17 × 17 fixed detector |
| Pixel Pitch | 140 µm |
| Imaging Technology | Fully motorized U-arm with auto-positioning for 18 customizable pre-programmed studies |
| Image Processing | Canon version: CXDI Control Software NE with scatter correction and optional stitching; Integrated DR version: automatic stitching and embedded DR workflow features |
| Image Preview Time | Canon version: 1 second; Integrated DR version: preview in 2 seconds from exposure |
| Acquisition Time | Canon version: less than 4 seconds cycle time |
| Battery Runtime | Canon wireless version: more than 1,500 images at 7-second cycle; more than 140 images at 100-second cycle |
| Power / Charging | Canon wireless version: charging time approximately 150 minutes; Integrated DR version: fixed detector configuration |
| Connectivity | Canon version: DICOM worklist/export with IEEE 802.11ac wireless; Integrated DR version: EMR, MWL, MPPS, DAP integration, and automated exports |

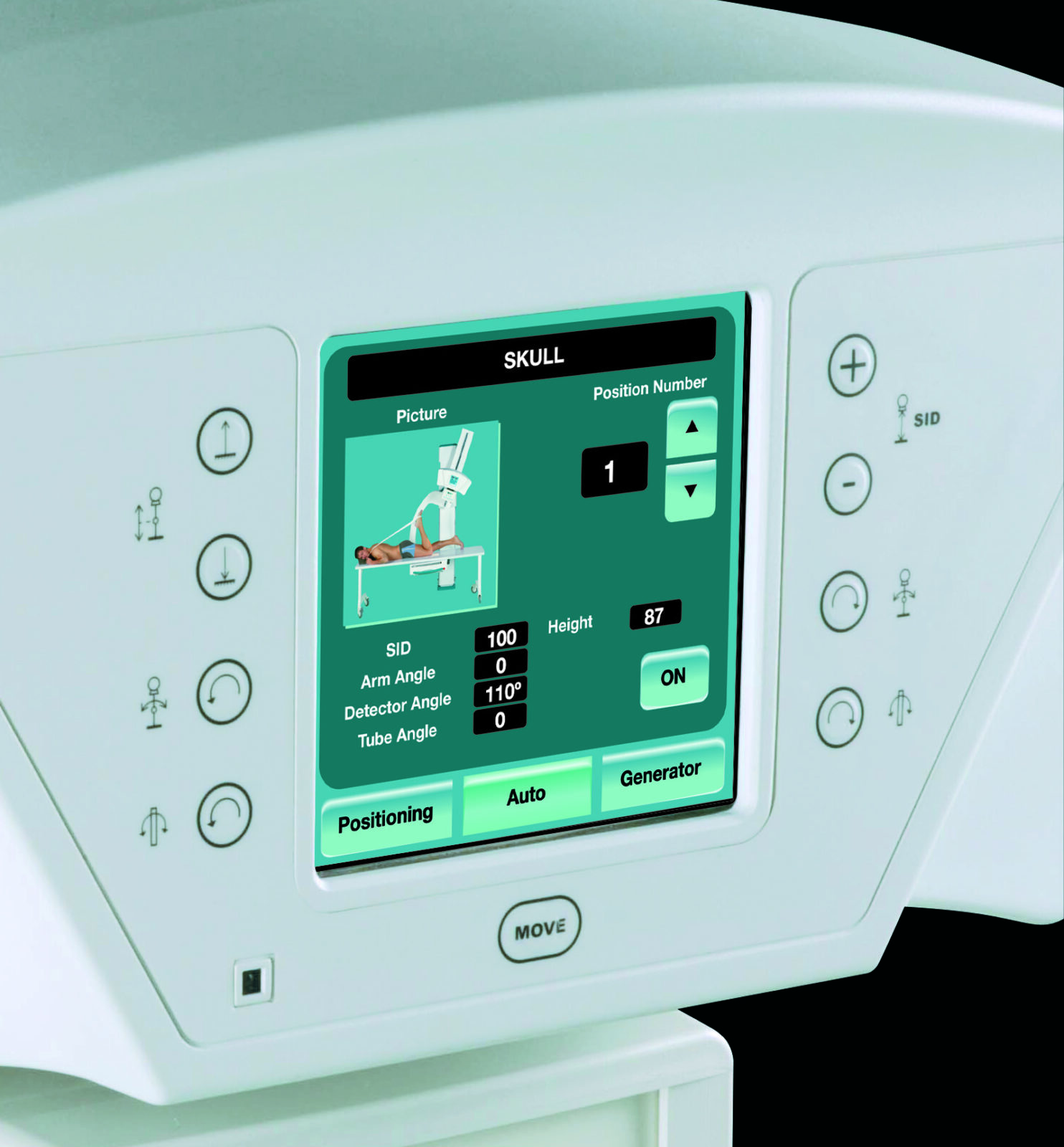

| Workflow Interface | Control panel with position refinement; detector-side controls; remote control; worklist-driven operation |
| Imaging Capability | Standing, seated, recumbent, LLI, and scoliosis imaging with constant tube-to-receptor alignment; stitching support for long-length studies |
| Clinical Applications | General radiographic procedures including standing, seated, recumbent, LLI, scoliosis, and table-based exams |
| Warranty | 5-year manufacturer parts warranty |
Flexible U-Arm DR Performance
The AAU Elite combines automated positioning, compact installation, and integrated DR workflow options.
Automated Exam Positioning
The fully motorized U-arm supports 18 customizable pre-programmed study positions, helping technologists move efficiently between routine views and more complex exam setups.
Integrated DR Configurations
AAU Elite is available with different DR configurations, including Canon wireless imaging or a fully integrated fixed-detector workflow. This gives facilities flexibility in software, detector, and stitching preferences.
Broad Radiographic Coverage
The system supports standing, seated, recumbent, LLI, and scoliosis exams while maintaining constant tube-to-receptor alignment. Optional table support expands positioning flexibility when needed.
