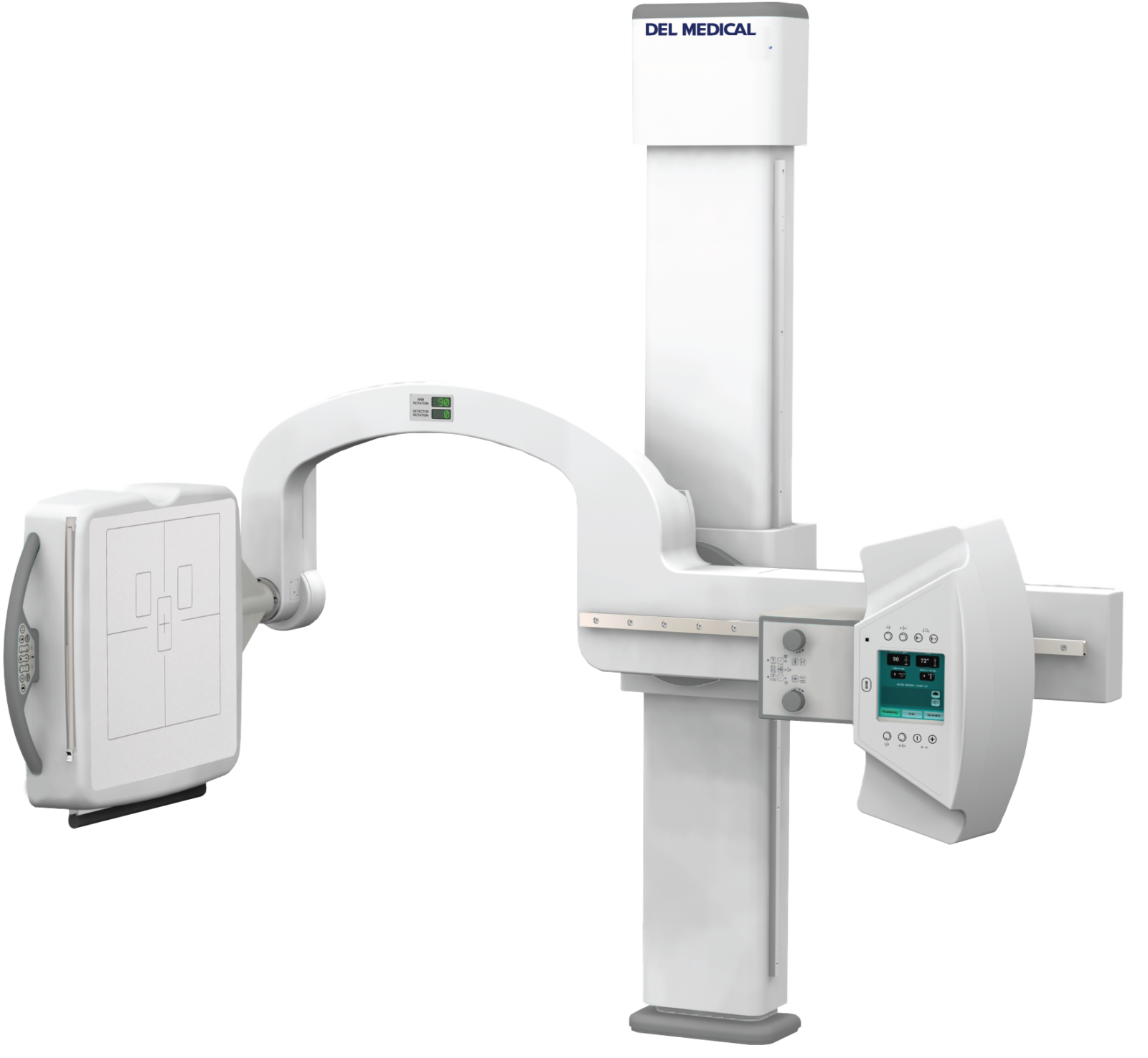

Del Medical U-Arm
Explore the UArm Series from Del Medical, a motorized U-arm X-ray system with flexible positioning, DR upgrade options, and compact workflow control.
Del Medical U-ArmTechnical Specifications
| System Type | Analog or digital U-arm X-ray system |
|---|---|

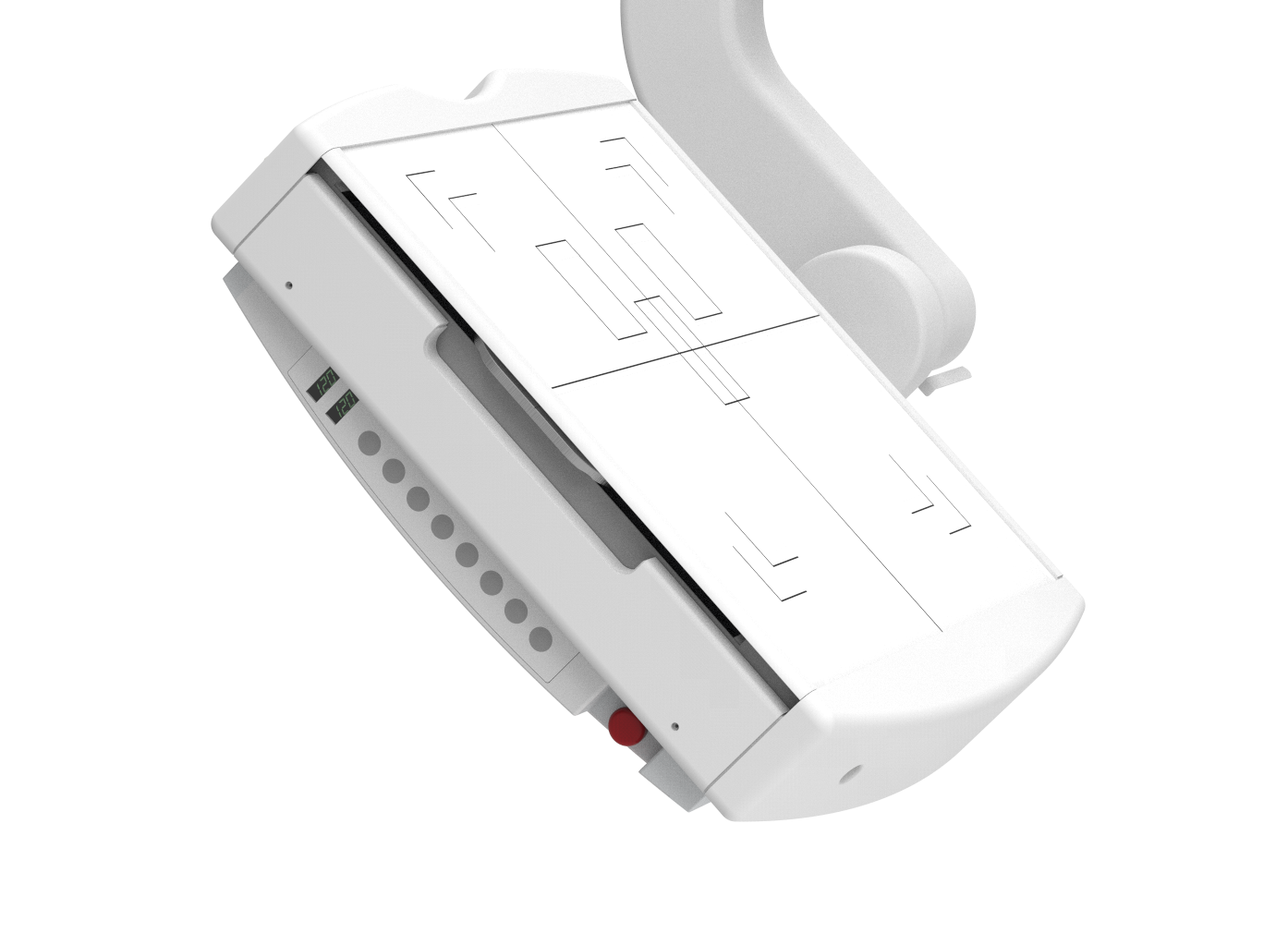

| Detector Type | Optional DelWorks E17C fixed 17 × 17 cesium DR detector for digital configuration |
| Detector Sizes | 17 × 17 fixed detector in DelWorks DR package |
| Display | UArmPlus: LCD touchscreen console; UArm: standard operator console |
| Imaging Technology | Dual-speed motorized movement for SID adjustment, arm elevation, and arm rotation; constant tube-to-receptor alignment |
| Image Processing | DelWorks acquisition and processing software with advanced image processing algorithms and stitching for medical applications |
| Image Preview Time | Under 1 second with E17C detector |
| Power / Charging | 230/240 VAC single phase; generator options of 50 kW or 80 kW in line-powered, battery-powered, or capacitor-assisted versions |

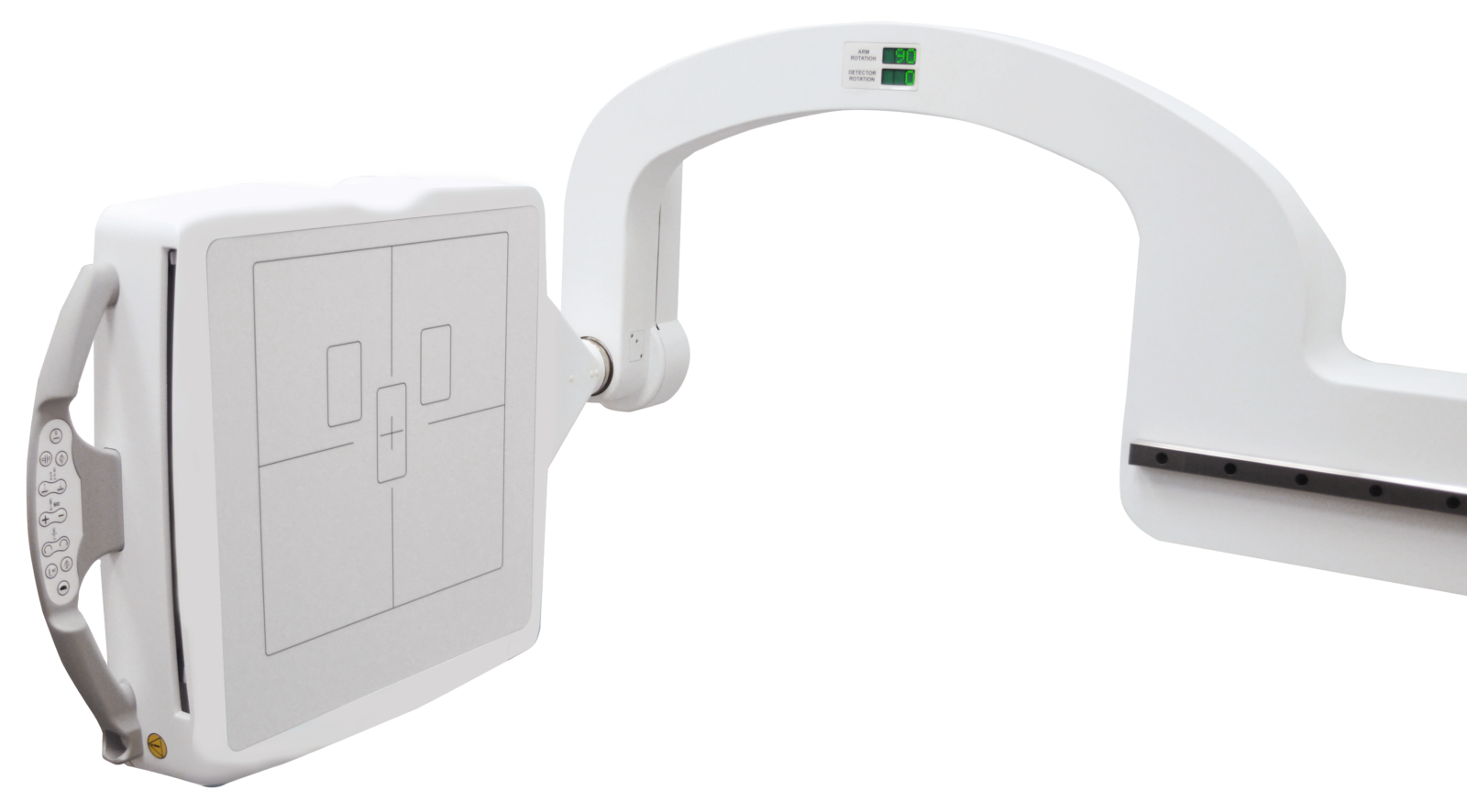

| Workflow Interface | Detector-side control panel; tube-cover controls; UArmPlus automatic pre-programmed positioning guide |
| Software Platform | DelWorks E-Series acquisition and processing software; Windows-based interface |
| Dimensions / Size | Vertical travel 47.8"; variable SID 40"–72"; mobile table 78.7" × 25.6" × 27.6" |
| Weight | U-arm: 714.3 lb (324 kg); mobile table: 101.4 lb (46 kg) |
| Mounting / Configuration | UArm with standard console or UArmPlus with touchscreen console; optional digital package and mobile table |
| Load Capacity | Optional mobile table supports up to 441 lb (200 kg) patient capacity |
| Clinical Applications | Hospital emergency rooms, orthopedic imaging, and general radiographic procedures in sitting, erect, and recumbent positions |
Flexible U-Arm Imaging Control
The UArm Series combines motorized positioning, room flexibility, and analog or digital workflow options.
Motorized Positioning Range
The system uses dual-speed motorized movement for SID adjustment, arm elevation, and arm rotation. This supports flexible positioning across sitting, erect, and recumbent exams.
Digital Upgrade Path
The UArm Series can be configured with the DelWorks DR package, including a fixed 17 × 17 detector, Windows-based acquisition software, and under-1-second image preview.
Built for Broad Radiography Use
Designed for emergency, orthopedic, and general radiographic applications, the UArm Series fits facilities that need one system to support varied patient positions and workflows.
