DIAMOND

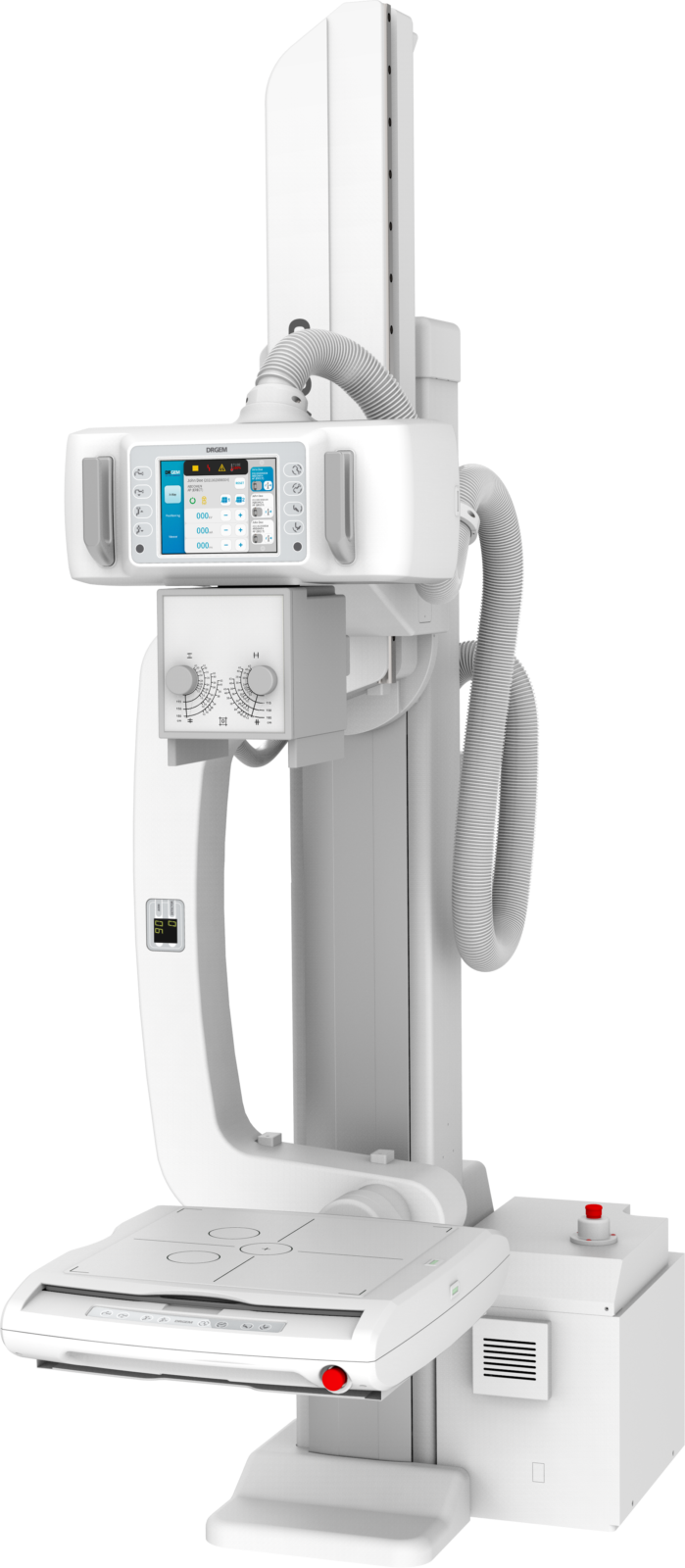

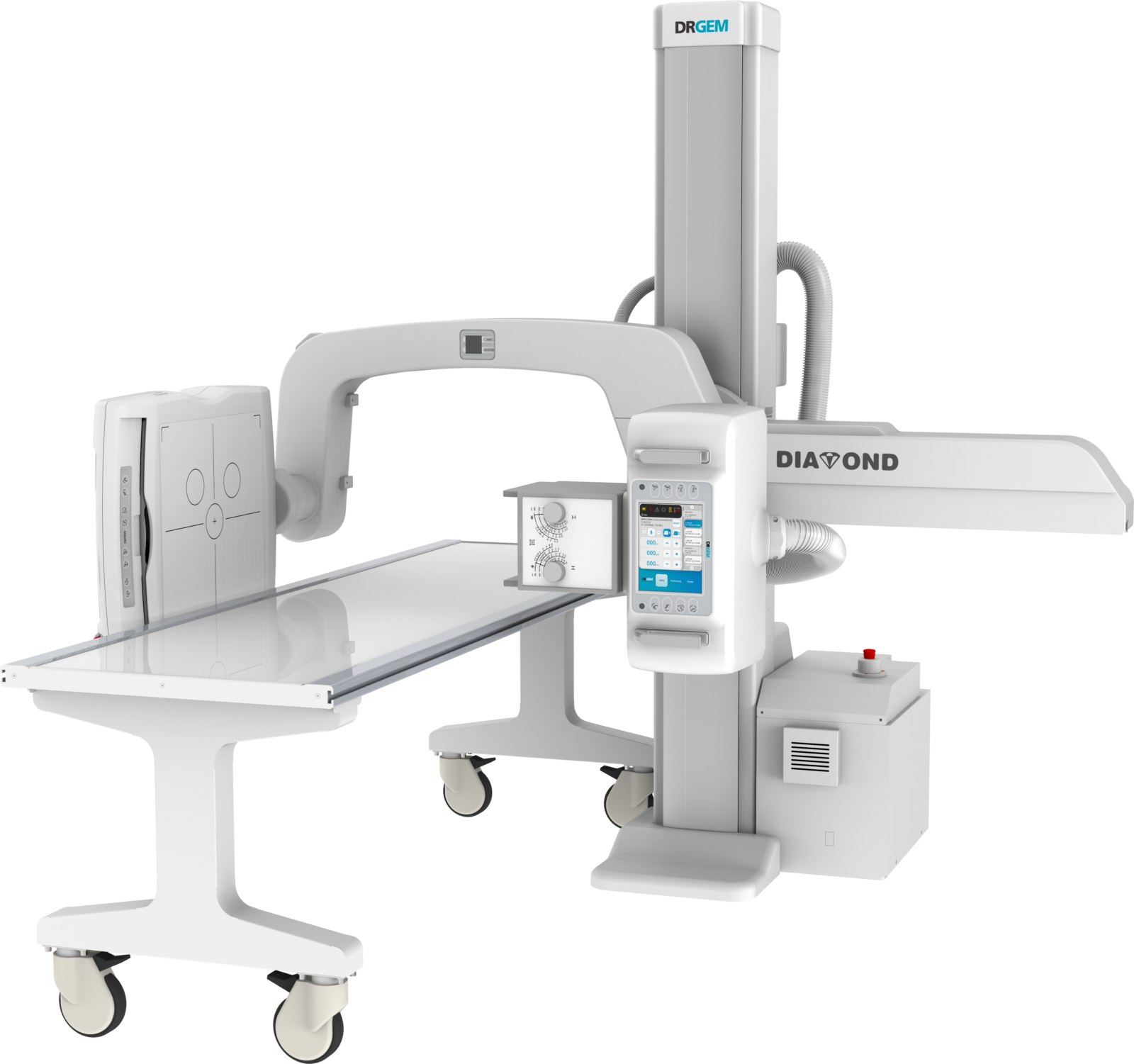

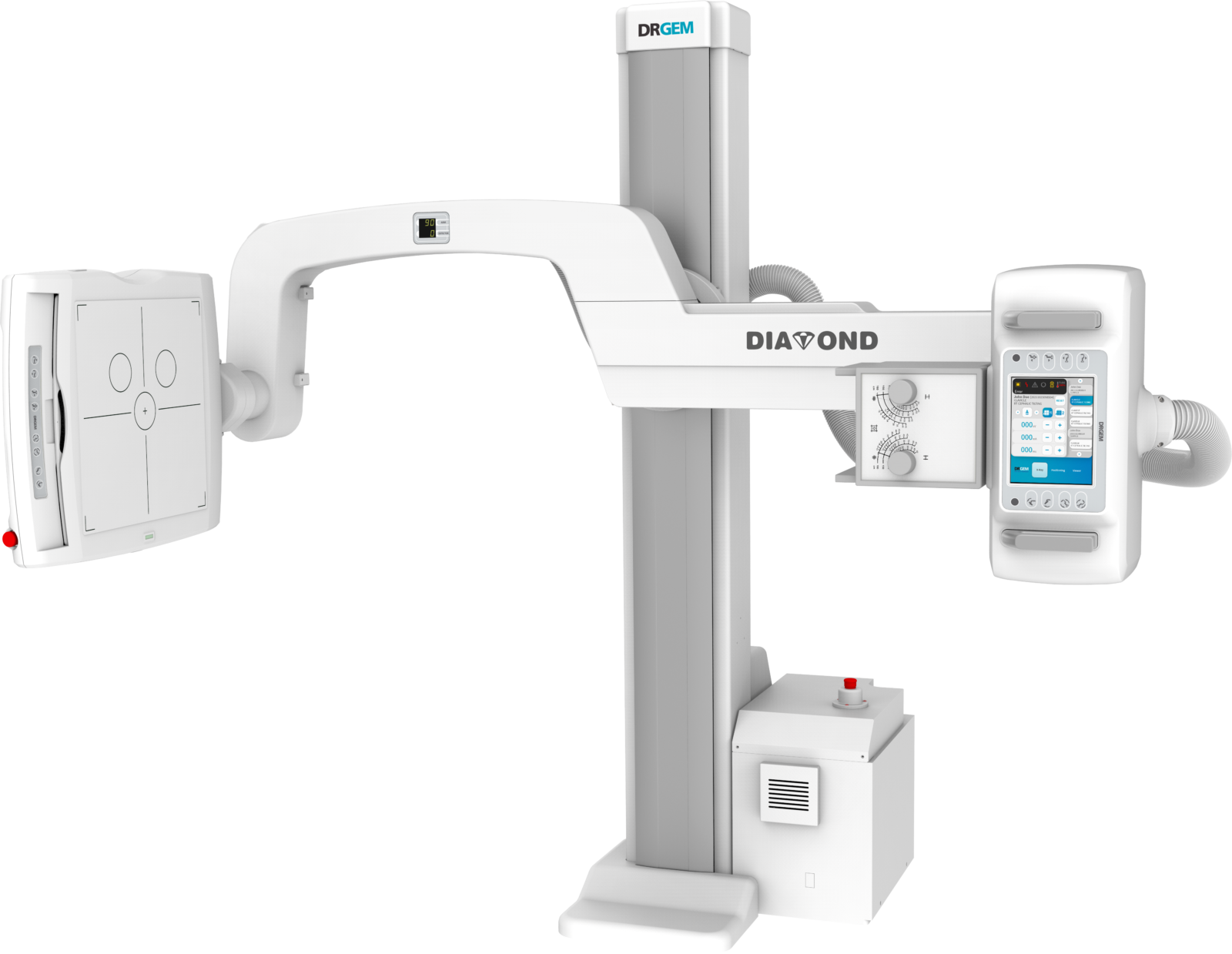

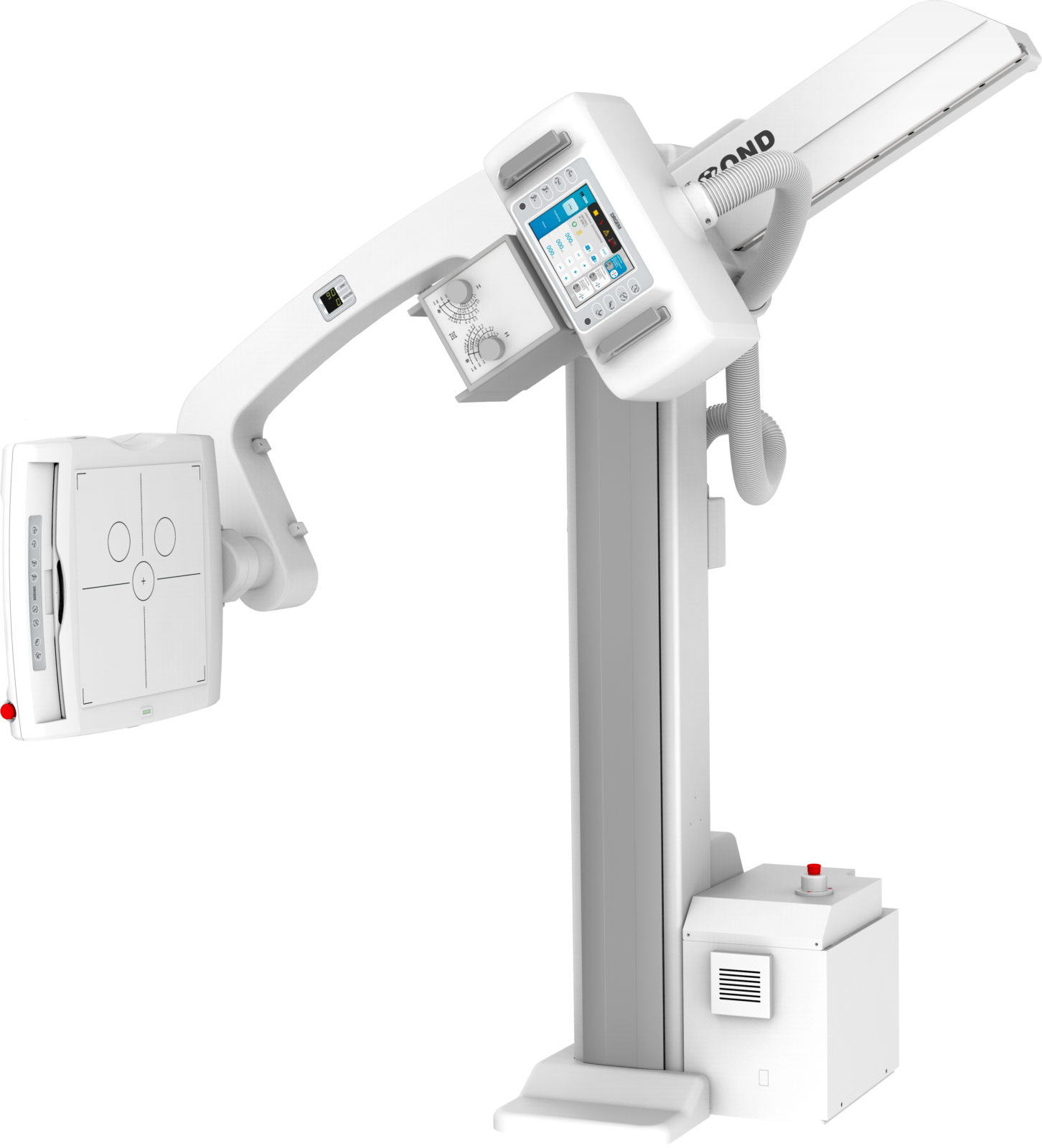

The DIAMOND DR System from DRGEM is an all-in-one digital radiography system designed for automated positioning and efficient exam workflow.
DIAMONDTechnical Specifications
| System Type | All-in-one digital radiography (DR) system |
|---|---|
| Detector Type | Digital flat panel detector with CsI screen; integrated AEC ion chamber |
| Exposure Detection | 3-field ion chamber for AEC function |
| Imaging Technology | Fully automatic DR system with motorized stand positioning, automatic collimation, and automatic stitching |
| Image Processing | Pre-programmed post-image processing based on selected anatomical study |
| Power / Charging | High-frequency generator options: 52 kW, 68 kW, or 82 kW |
| Workflow Interface | User-friendly touch console or remote control; automatic study-based setup |
| Mounting / Configuration | All-in-one DR system with optional mobile patient table support for varied positioning |
| Imaging Capability | Automatic stitching via source tilting; more than 15 exam positions; SID range 100–180 cm |
| Compatibility / Retrofit | Two removable grids for SID 100/180 cm; auto sensing of focal distance with grid insertion |
| Material | Detector case with aluminum casting; removable grids protected by aluminum frame with handle |
| Clinical Applications | Chest, abdomen, hand, seated, standing, and supine radiographic exams |
Automated DR Workflow Control
DIAMOND combines automatic positioning, study-based setup, and integrated DR imaging control.
Automatic Study Positioning
DIAMOND uses pre-programmed anatomical studies to automatically set generator technique, motorized stand position, and collimation. This reduces manual setup during routine exams.
Integrated Long-Length Imaging
Automatic stitching uses source tilting to create one long composite image. This supports longer studies with less manual adjustment and a more streamlined acquisition process.
Built for Versatile Exams

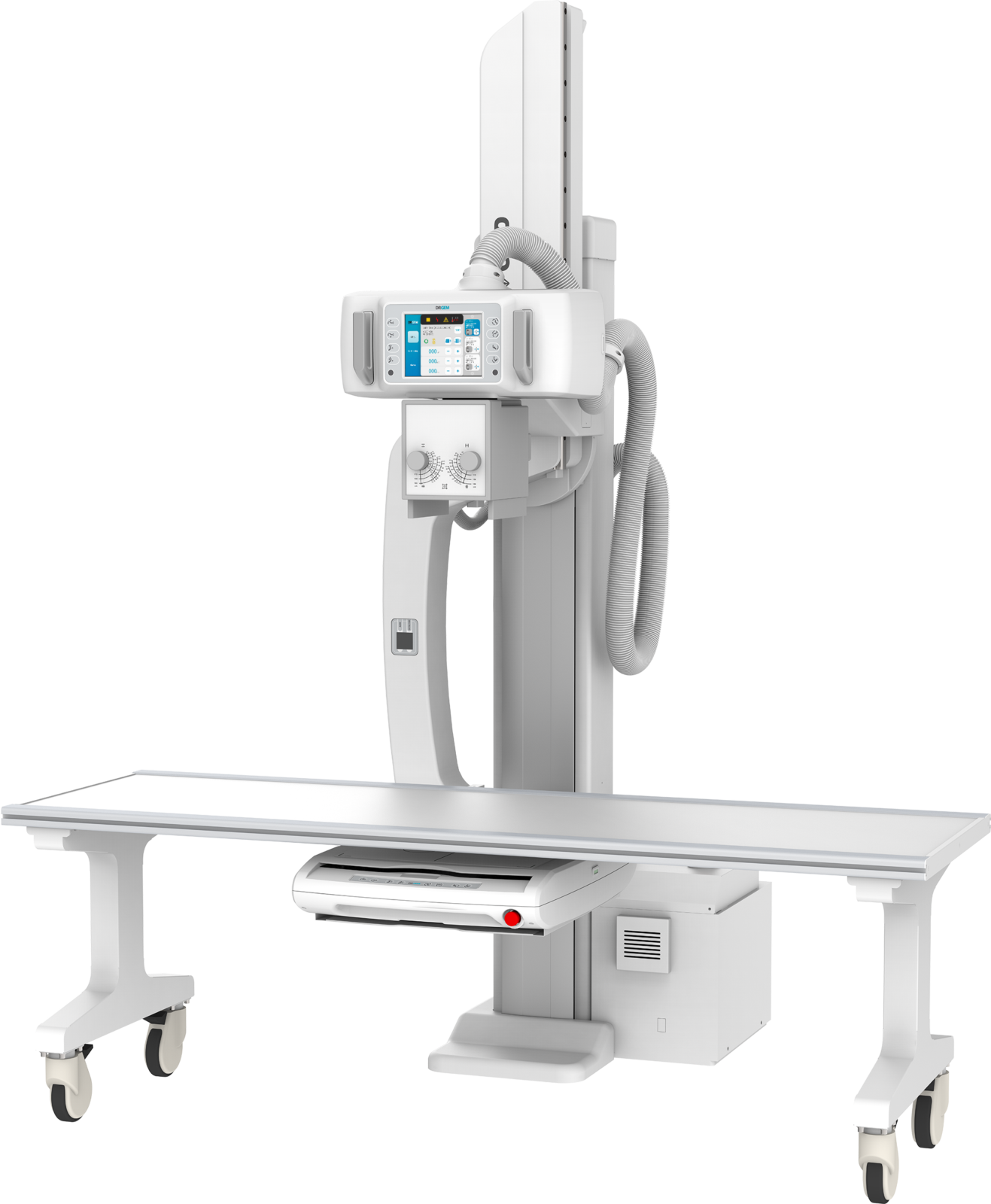

With over 15 supported positions and optional mobile table use, the system can accommodate standing, seated, and supine exams across a broad range of routine radiographic studies.
