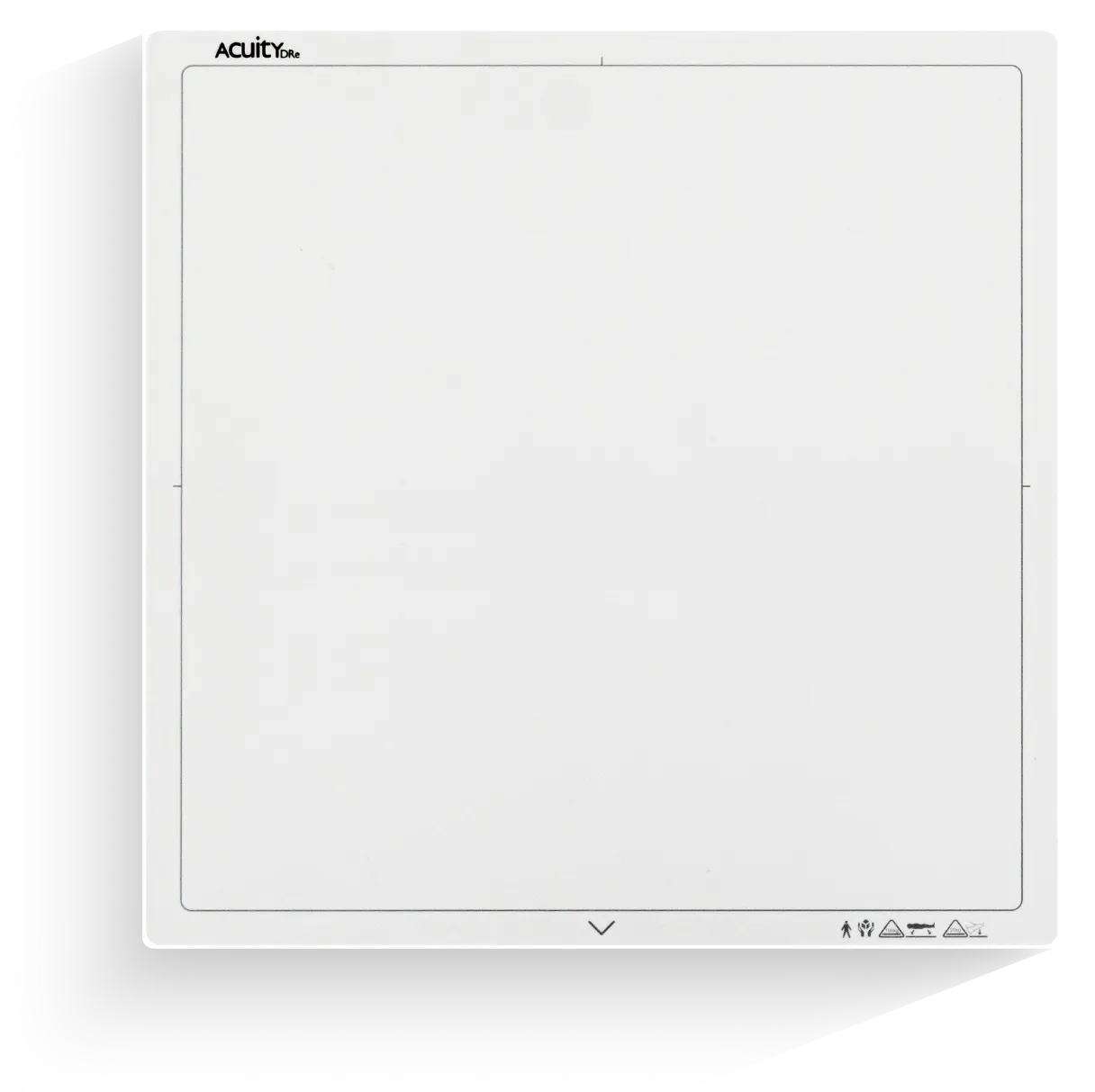

Acuity DRe 1717
Acuity DRe 1717 from Radmedix is a tethered veterinary DR panel built for retrofit imaging workflows.
Acuity DRe 1717Technical Specifications
| Detector Type | CsI DR detector panel |
|---|---|
| System Type | Tethered veterinary DR detector |
| Detector Sizes | 17 x 17 in.; active area 427 mm x 427 mm |
| Pixel Pitch | 139 µm |
| Exposure Detection | Automatic Exposure Detection; X-Ray I/F |
| Imaging Technology | Direct deposited Cesium Iodide; 16-bit A/D conversion |
| Image Processing | AccuVue image processing with anatomy-specific processing algorithms |
| Image Preview Time | Approximately 5 seconds for wired systems |
| Acquisition Time | Approximately 8 seconds for wired systems |
| Connectivity | Tethered detector configuration |
| Compatibility / Retrofit | Cassette-size panel fits standard Buckys and holders |
| Imaging Capability | 3.4 lp/mm resolution; 16-bit dynamic range; low-dose exam support |
| Protection Rating | IPX-1 water resistance rating |
Veterinary DR Retrofit Imaging
Acuity DRe 1717 supports veterinary DR imaging with retrofit fit, image clarity, and reliable exposure control.
Cassette-Size Retrofit Panel
The 17 x 17 tethered panel fits standard Buckys and holders, helping veterinary teams upgrade X-ray rooms without major equipment changes.
Detailed DR Image Quality
CsI technology, 139 µm pixel pitch, and 16-bit conversion support detailed image capture for veterinary diagnostic exams.
Built for Vet Workflows
The maximized field of view supports no-rotation veterinary exams, while AED helps streamline image capture during low-dose studies.
