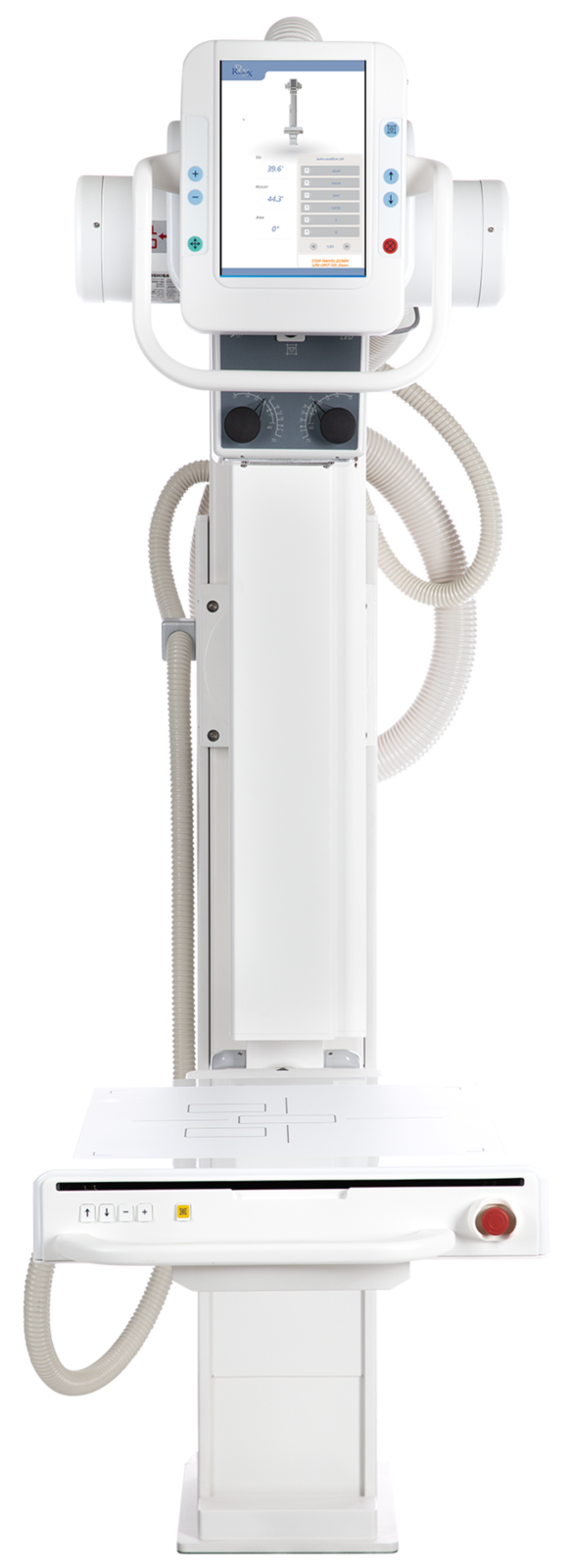

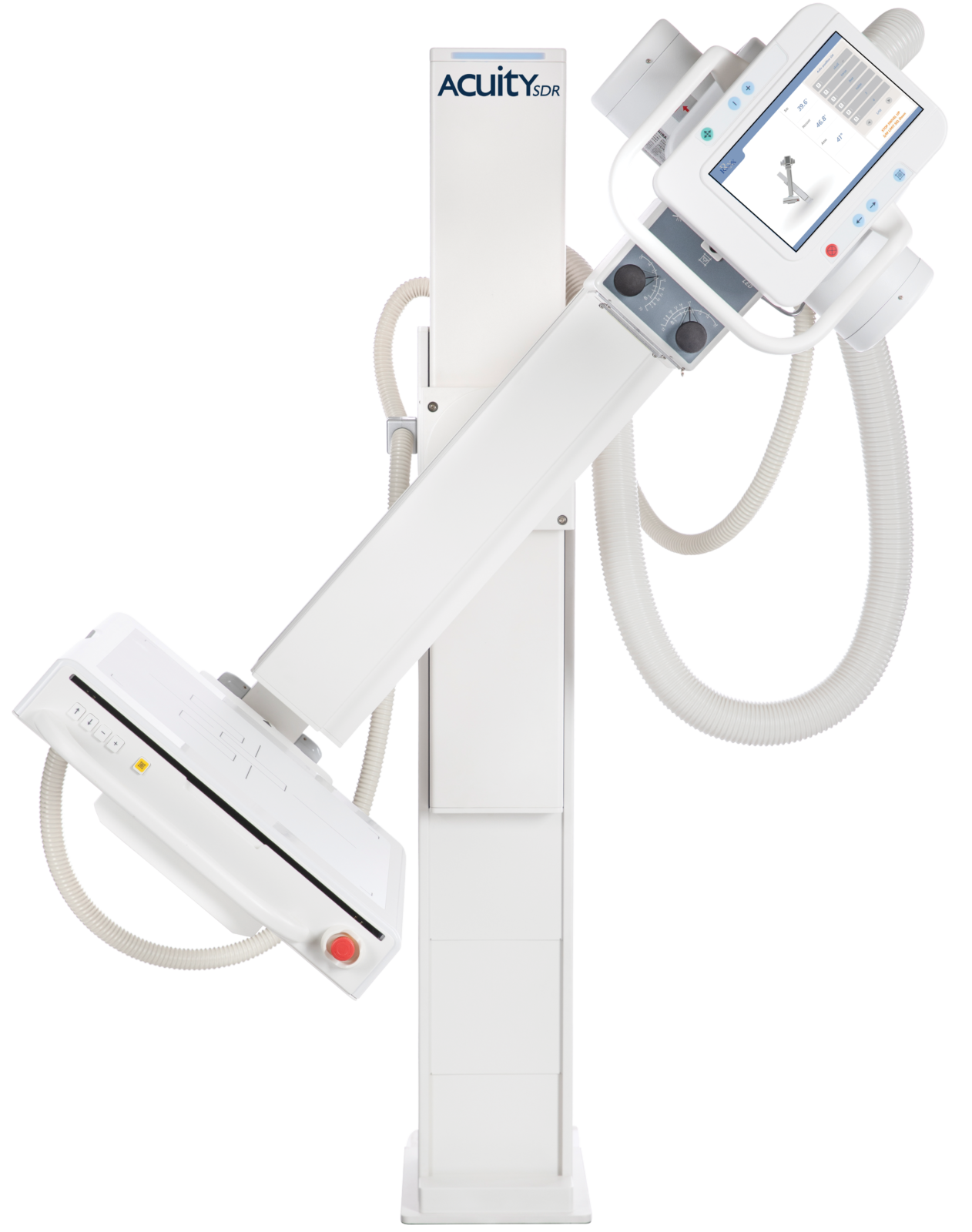

Acuity SDR/SDR+
The Acuity SDR / SDR+ from Radmedix is a compact digital X-ray system designed for efficient positioning, integrated imaging, and flexible exam workflows.
Acuity SDR/SDR+Technical Specifications
| System Type | Digital radiography (DR) X-ray system |
|---|---|

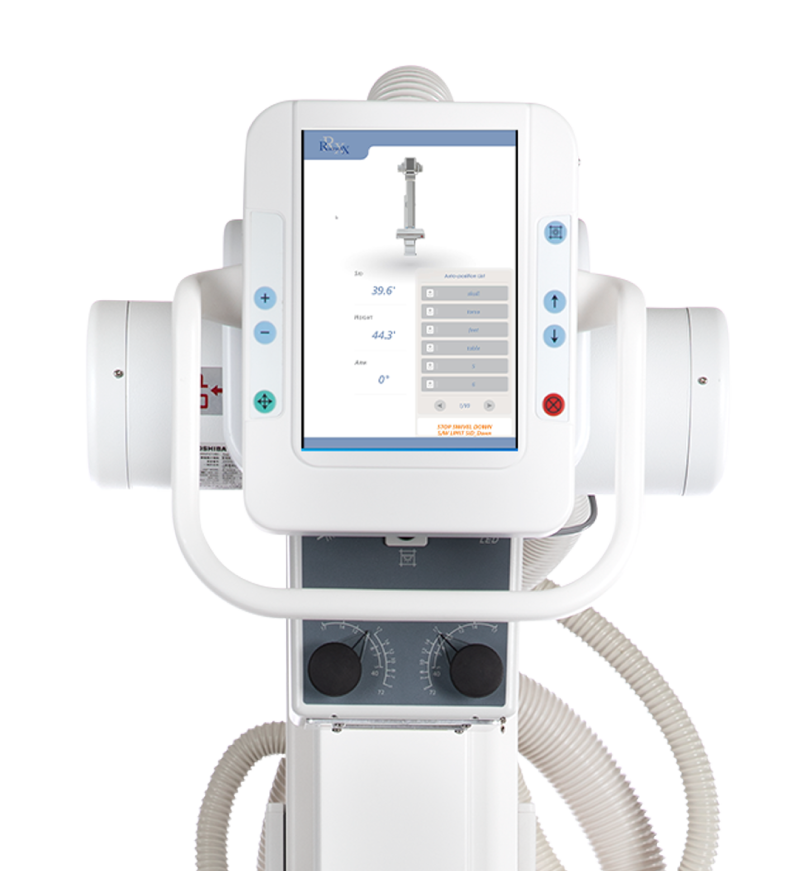

| Display | SDR+: 10" touchscreen display; SDR Standard: 5" standard display |
| Imaging Technology | Integrated high-frequency X-ray generator; dual laser rotating LED collimator; removable grid |
| Image Processing | Integrated high-performance digital flat panel DR imaging with fast image display |
| Workflow Interface | SDR+: semi-automated preset positioning with up to 60 programmed positions; Bucky-side movement and collimator controls |
| Mounting / Configuration | Compact upright DR system designed for full functionality within an 8' ceiling |
| Imaging Capability | General and specialized diagnostic imaging with upright exams and optional table-based supine positioning |
| Compatibility / Retrofit | Optional lightweight mobile patient imaging table; optional Automatic Exposure Control (AEC) |
| Load Capacity | Optional mobile patient imaging table supports up to 516 lbs. |
| Clinical Applications | General radiology, orthopedic imaging, upright skeletal exams, optional recumbent imaging |
Flexible DR Workflow Performance
The Acuity SDR / SDR+ combines compact installation, digital imaging, and adaptable exam control.
Preset Positioning Control
The SDR+ supports up to 60 semi-automatic preset positions for stand height, orientation, and SID, while the SDR Standard offers simplified operation with the same core system versatility.
Integrated Digital Imaging
Both configurations pair integrated digital flat panel imaging with a high-frequency generator for fast image display and consistent diagnostic output across general and orthopedic exams.
Built for Compact Rooms

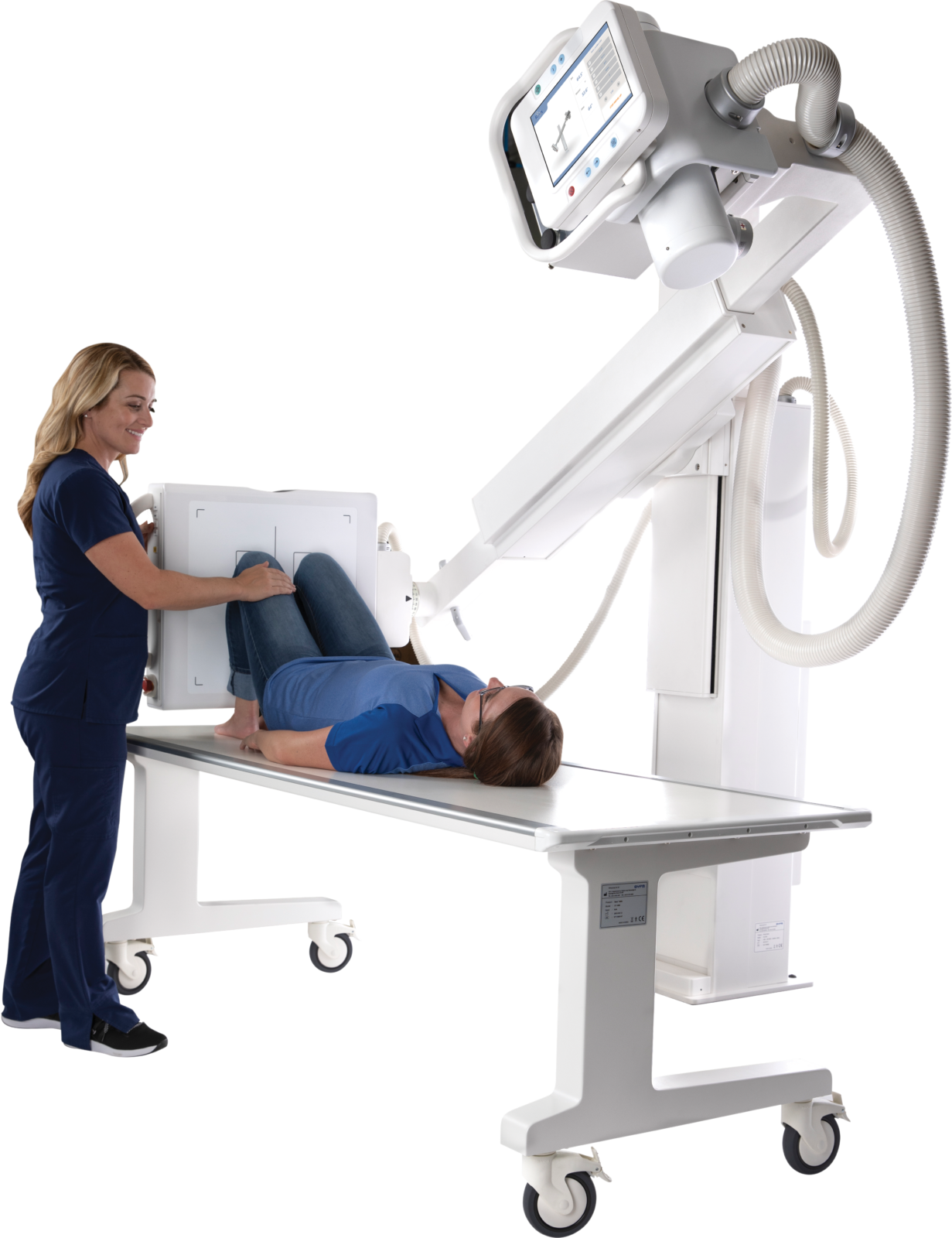

The system is designed to fit within an 8-foot ceiling without sacrificing functionality. Optional table support expands exam flexibility for practices that need recumbent imaging capability.
