FWFC

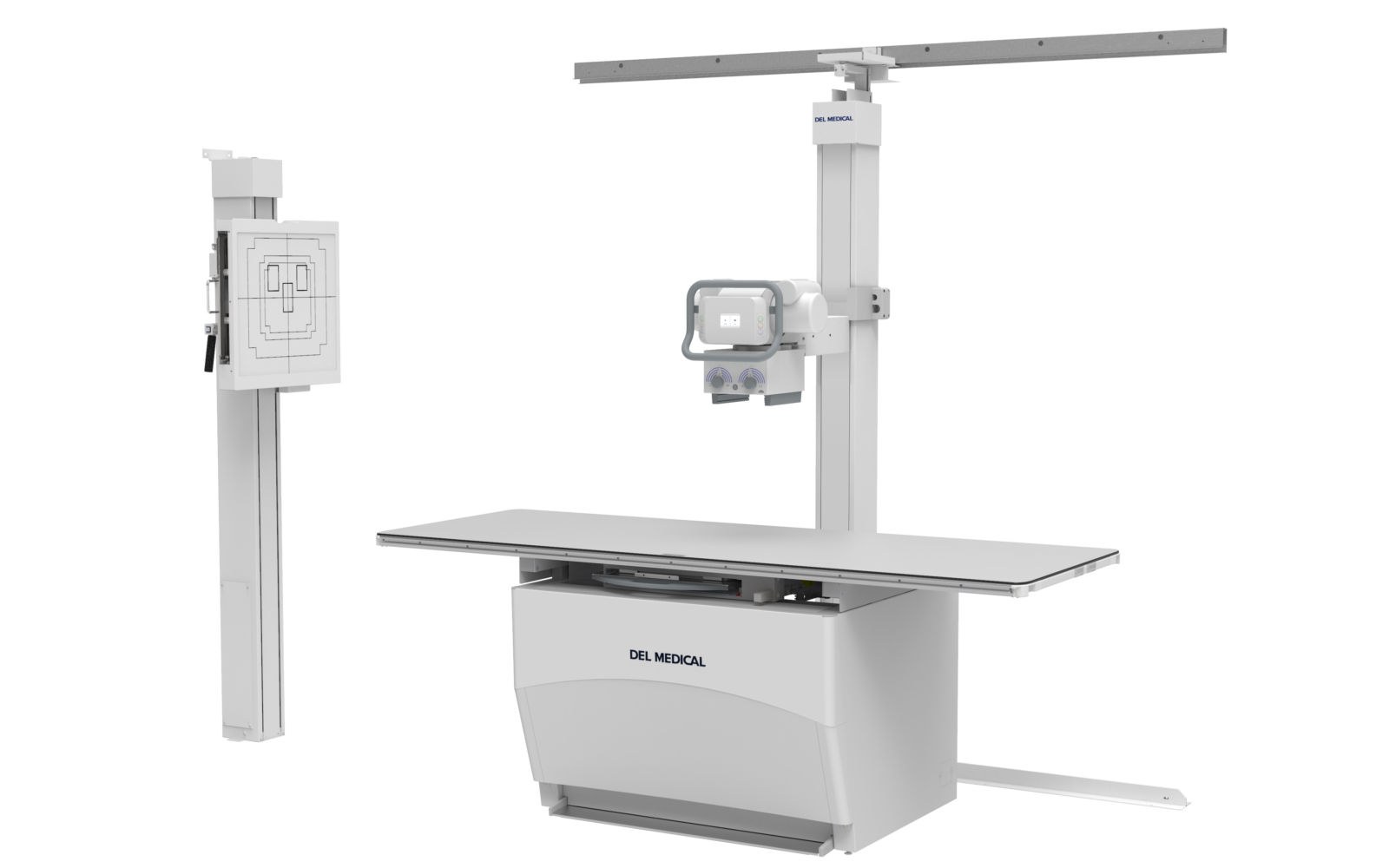

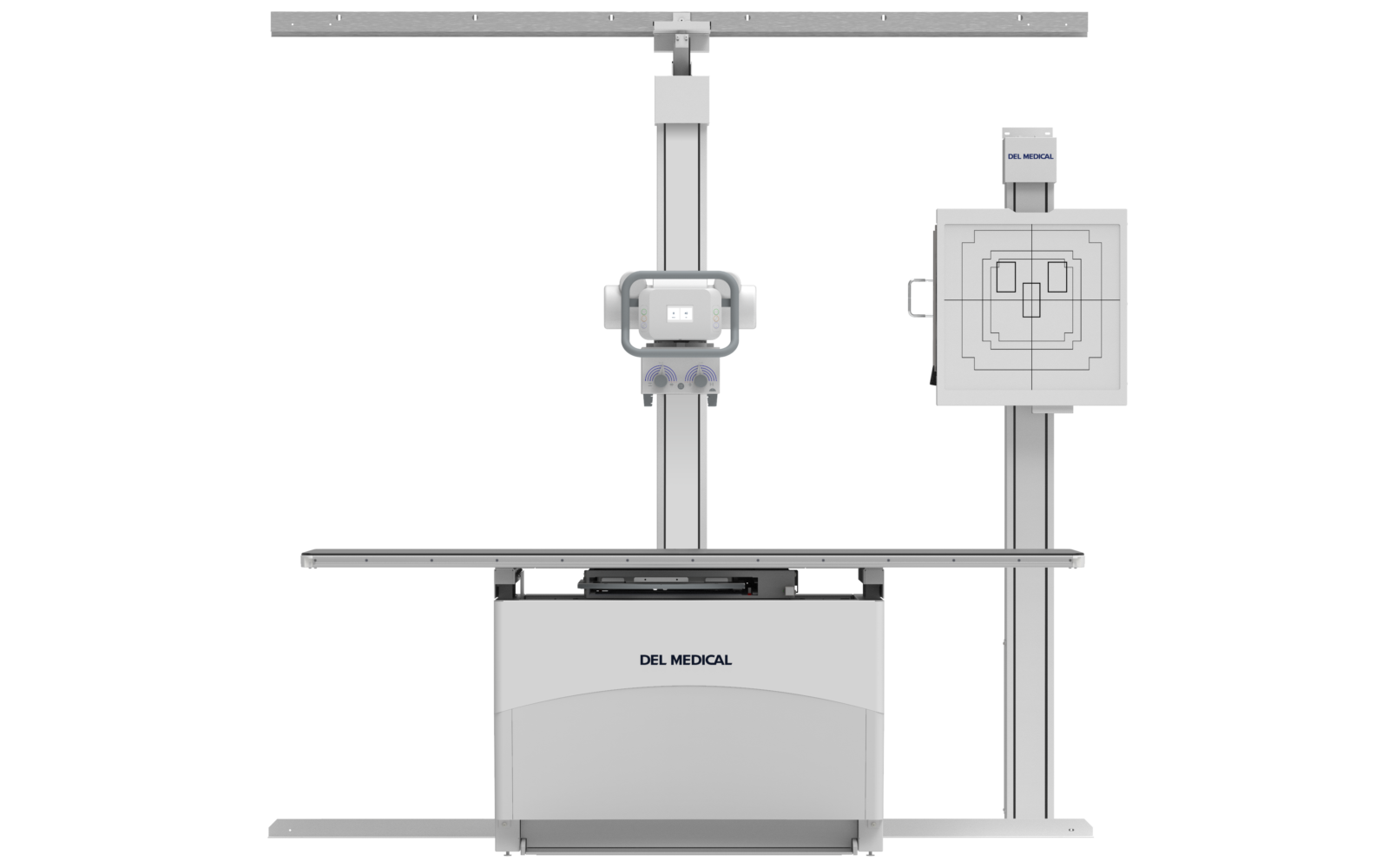

The FWFC from Del Medical is a floor/wall or floor/ceiling radiographic system designed for flexible installation and efficient imaging workflows.
FWFCTechnical Specifications
| System Type | Radiographic X-ray system |
|---|---|
| Mounting / Configuration | Floor/wall or floor/ceiling mounted tube stand with table and wall stand |
| Detector Sizes | 14×17; 17×17 (fixed and wireless options) |

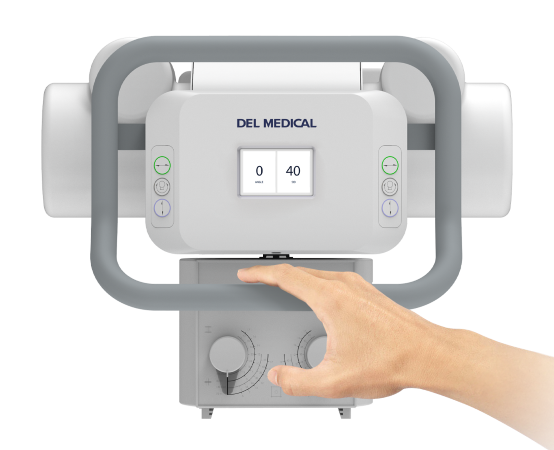

| Workflow Interface | Tube head controls; digital SID and angulation display; manual positioning controls |
| Imaging Technology | Electromagnetic locks; 180° column rotation; high-frequency generator |
| Image Processing | DELWORKS software with APR, LUT adjustment, histogram tools, stitching |
| Power / Charging | 115 / 230 VAC; generator options 30–65 kW |
| Connectivity | Integrated DR system with wireless detector support |
| Software Platform | DELWORKS DR acquisition software |
| Load Capacity | Up to 700 lbs (RT100 table); 800 lbs optional elevating table |
| Clinical Applications | General radiography, orthopedic imaging, imaging centers, urgent care |
| Warranty | 5-year manufacturer warranty |
Flexible Radiographic System Performance
The FWFC delivers flexible installation, efficient positioning, and reliable imaging for space-conscious facilities.
Flexible Installation Options

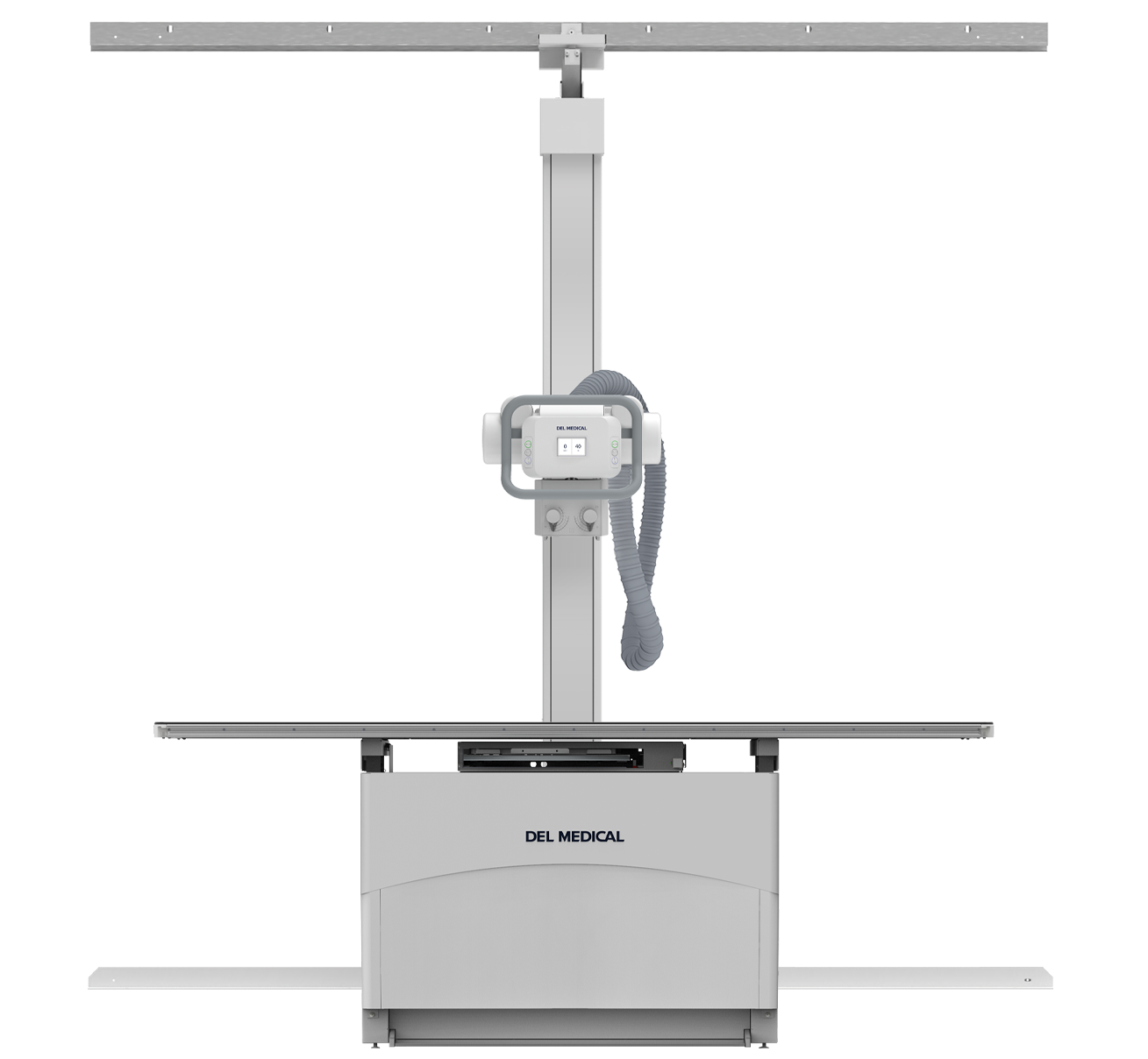

The system supports both floor/wall and floor/ceiling configurations, allowing facilities to adapt installation based on room layout. This flexibility helps reduce the need for structural modifications.
Compact Precision Positioning
With 180° column rotation, transverse travel, and electromagnetic locks, the system enables accurate and efficient positioning. This supports a wide range of radiographic exams with minimal adjustment time.
Designed for Accessible Imaging
Ideal for imaging centers and urgent care facilities, the system delivers reliable performance in lower-volume environments while maintaining consistent image quality and workflow efficiency.
