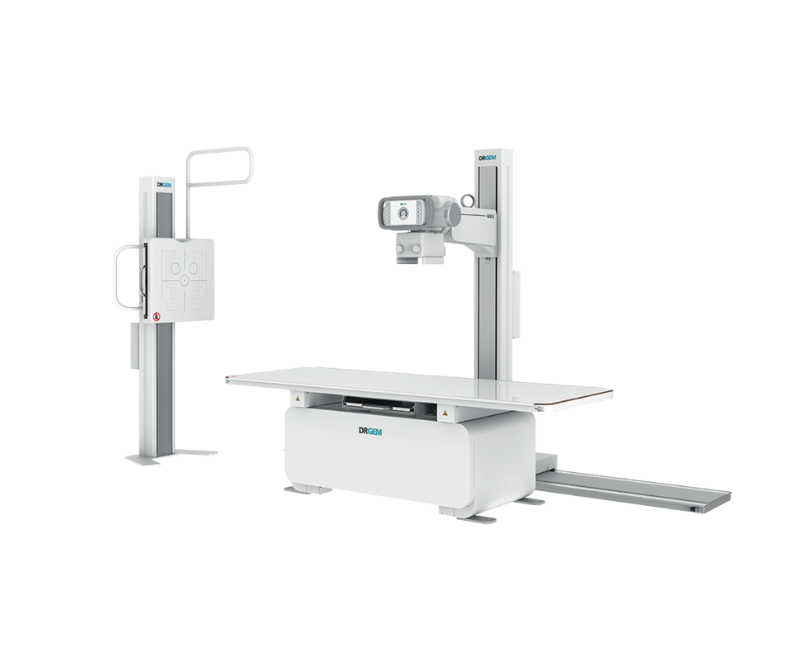

GXR-S Series
The GXR-S Series from DRGEM is a configurable radiographic system designed for flexible installation, DR upgrades, and efficient imaging workflows.
GXR-S SeriesTechnical Specifications
| System Type | Radiographic X-ray system |
|---|---|
| Mounting / Configuration | Floor-mounted, floor-ceiling suspended, and premium configurations available |
| Detector Sizes | 14×17; 17×17 (DR-compatible bucky systems) |
| Workflow Interface | Touchscreen console (optional); tube head display; system control interface |
| Imaging Technology | High-frequency X-ray generator; DR-ready interface; synchronized positioning (optional) |
| Image Processing | DR workflow with PC interface; supports flat panel detector integration |
| Power / Charging | 220–230 VAC or 380–480 VAC; 1Ø or 3Ø configurations; 32–82 kW output range |
| Connectivity | DR system integration; workstation and network connectivity |
| Software Platform | DR acquisition software (PC-based interface) |
| Load Capacity | Up to 300 kg (661 lbs) standard table; higher with elevating table options |
| Compatibility / Retrofit | Upgradeable to DR with flat panel detector and generator interface |
| Clinical Applications | General radiography, orthopedic imaging, hospital and imaging workflows |
| Warranty | Varies by configuration (manufacturer standard warranty) |
Configurable Radiographic System Performance
The GXR-S Series delivers scalable configurations, flexible workflows, and consistent imaging performance across clinical environments.
Flexible System Configurations
The system is available in floor-mounted, ceiling-suspended, and premium configurations, allowing facilities to match system design to room layout and workflow needs.
Consistent Imaging Output
A high-frequency X-ray generator delivers stable output with low ripple and accurate exposure control. This supports consistent image quality across a wide range of radiographic exams.
Designed for Scalable Workflows
The system supports DR upgrades and multiple detector configurations, making it suitable for facilities transitioning from analog to digital workflows or expanding imaging capabilities.
