GXR-ES/ECS Plus

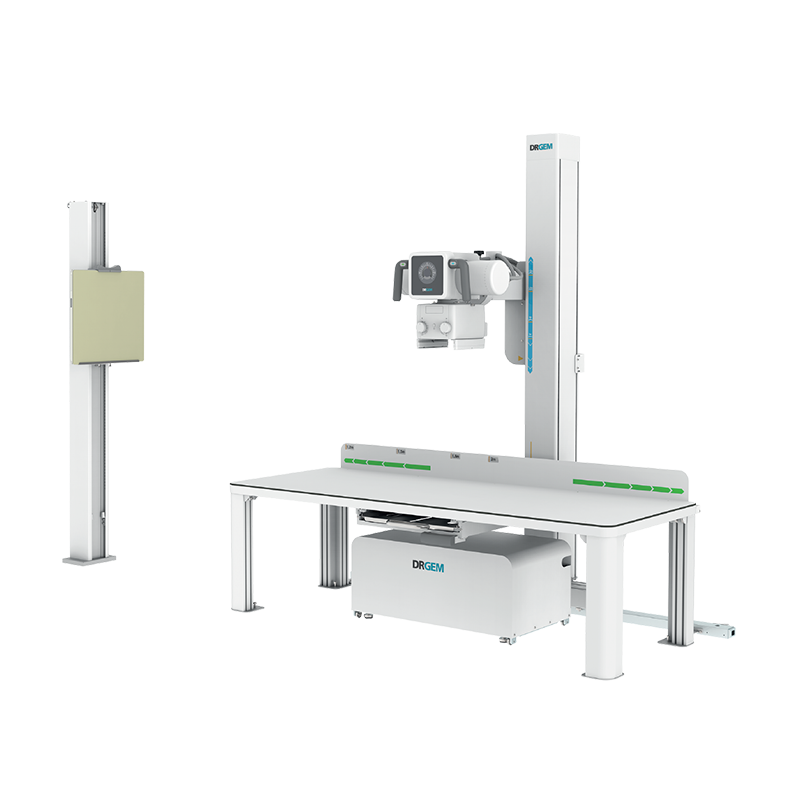

The GXR-ES/ECS Plus from DRGEM is a compact radiographic system with an integrated generator designed for space-saving installation and efficient imaging workflows.
GXR-ES/ECS PlusTechnical Specifications
| System Type | Radiographic X-ray system |
|---|---|
| Mounting / Configuration | Floor-mounted or floor-ceiling configurations with integrated table system |
| Detector Sizes | 14×17; 17×17 (bucky-compatible DR detectors) |
| Workflow Interface | Membrane console or touchscreen console; APR with up to 1,280 programs |
| Imaging Technology | High-frequency X-ray generator; integrated generator under table; AEC compatible |
| Image Processing | DR-ready workflow with PC interface; supports flat panel detector integration |
| Power / Charging | 100–120 / 200–240 VAC (1Ø); 380–400 VAC (3Ø); 40–50 kW output range |
| Connectivity | DICOM 3.0 compliant DR system integration |
| Software Platform | DR acquisition software with APR utility |

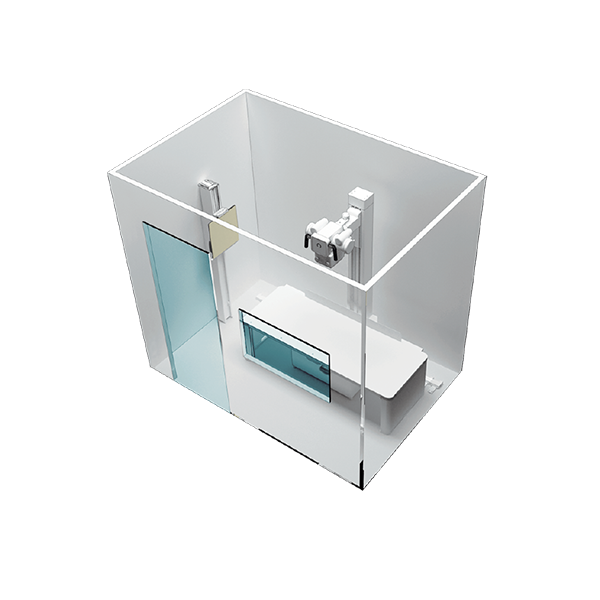

| Dimensions / Size | ~3889(W) × 2615(D) × 2100(H) mm minimum room layout |
| Load Capacity | Up to 300 kg (661 lbs) patient table |
| Compatibility / Retrofit | Upgradeable to DR with FPD and generator interface |
| Clinical Applications | General radiography, orthopedic imaging, hospital and imaging workflows |
| Warranty | Varies by configuration (manufacturer standard warranty) |
Compact Radiographic System Performance
The GXR-ES/ECS Plus delivers space-efficient design, integrated workflow, and consistent imaging performance.

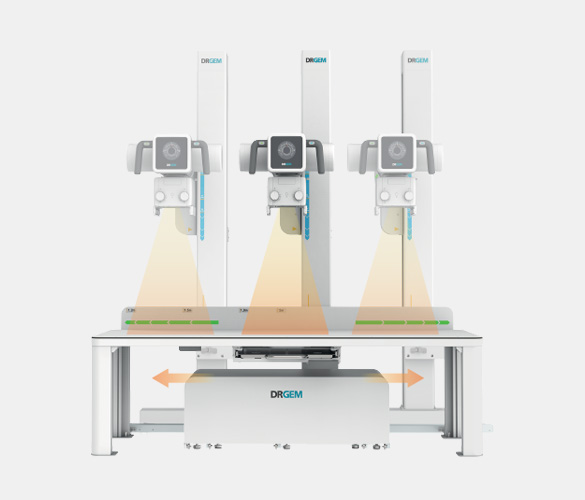

Space-Saving System Design
The generator is integrated beneath the patient table, reducing system footprint and enabling installation in smaller imaging rooms without sacrificing functionality.
Stable Imaging Output
A high-frequency generator provides consistent X-ray output with low ripple and precise control of kV and mAs. This supports reliable image quality across routine exams.
Efficient Clinical Workflows
User-programmable APR settings and flexible console options streamline exam setup and operation. The system integrates with DR workflows for improved efficiency across clinical environments.
